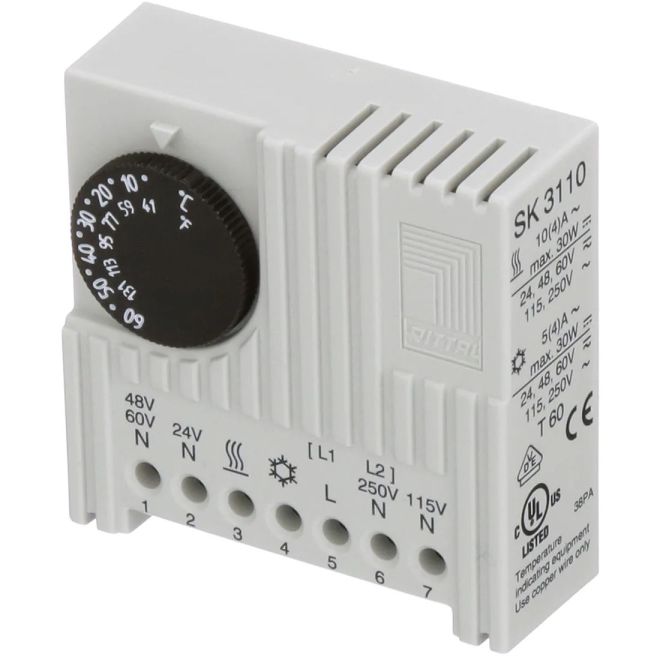

RITTAL 3110000 Thermostat Internal Enclosure SK
SKU#:
132170
Suitable for controlling filter fan units, heaters and heat exchangers. This thermostat can also be used as a signal generator for monitoring the internal enclosure temperature. Rittal 3110000 thermostat supports flexible mounting on a vertical or horizontal 35 mm support rail to EN 50 022 snap fastening in the enclosure section or on the mounting plate using the supplied adapter. Time-saving connection technique using a terminal strip with a screw connection from the outside.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 3110000 |
| Manufacturer Alternate Number | SK 3110.000 |
| UPC | 639889212008 |
| Color | RAL 7035 |
| Supply Voltage Range | 24VDC - 60VDC, 24V - 230V 1~ 50Hz/60Hz |
| Temperature Range | +5°C to +60°C |
| Type | Thermostat |
| Height (mm) | 71mm (2.8") |
| Width (mm) | 71mm (2.8") |
| Depth (Length) (mm) | 33.5mm (1.3") |
| Weight (lbs) | 0.42 |
| UOM | ea |
