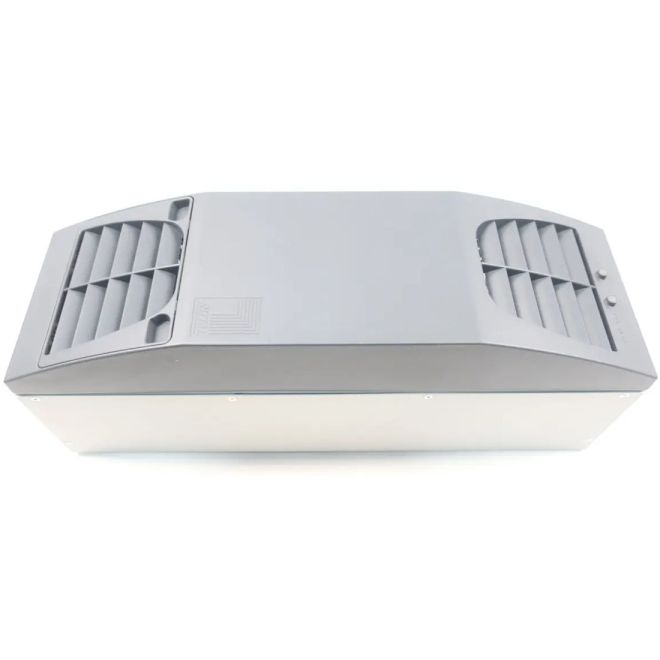

RITTAL 3201200 Thermoelectric Cooler SK 3201.200
SKU#:
414105
Rittal 3201200 thermoelectric cooler total cooling/heating output 100 W in a lightweight design is the ideal climate control solution for command panels and small enclosures.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 3201200 |
| Manufacturer Alternate Number | SK 3201.200 |
| UPC | 639889861237 |
| Material | Aluminum Anodized |
| Color | Cover: RAL 7024 |
| IP Rating | Internal Circuit IP54, External Circuit IP34 |
| Supply Includes | Plug-in Terminal Strip, Mounting Accessories, Parameterization Software, Thermoelectric Climate Control Unit |
| Miniature Circuit-Breaker/Fuse | 4A |
| Supply Voltage Range | 100V - 240V 1~ 50Hz/60Hz |
| Rated Current | 1.9A |
| Temperature Range | -30°C to +55°C |
| Air Throughput Unimpeded | External Circuit: 132m<sup>3</sup>/h (77.7cfm), Internal Circuit: 132m<sup>3</sup>/h (77.7cfm) |
| Thermal Output | 100W (341 BTU) |
| Type | Cooler |
| Height (mm) | 400mm (16") |
| Width (mm) | 125mm (4.9") |
| Depth (Length) (mm) | 155mm (6.1") |
| Weight (lbs) | 11.61 |
| UOM | ea |
