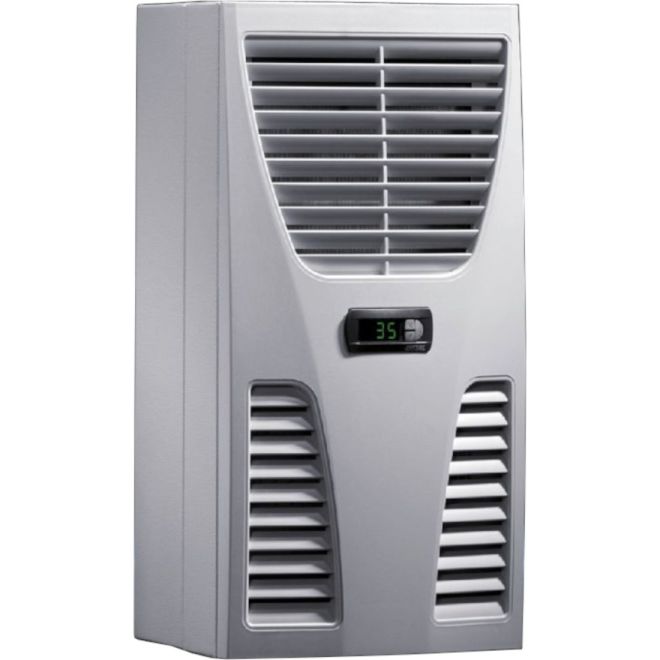

RITTAL 3303510 TopTherm Wall-Mounted Cooling Unit

SKU#:

270598

Rittal Blue e+ uses an innovative process that relies upon two parallel cooling circuits working together, adjusting to the desired temperature of the enclosure. The integral heat pipe passively dissipates heat while active cooling is achieved via the compressor's cooling circuit with variable speed-controlled components. This unique inverter technology provides cooling output that is on target at the time it is needed. By combining variable speed cooling components, Blue e+ delivers significant energy savings and a longer service life for the enclosure components. 3303510 Blue e+ enclosure air conditioners can save up to 75% in enclosure cooling costs and energy. Featuring hybrid, climate control with patented heat pipe technology, the unit offers a range of powerful new features that provide longer component life, flexibility and ease of use.
Specifications
Brand RITTAL
Manufacturer Part Number 3303510
Manufacturer Alternate Number SK 3303.510
UPC 639889000063
Material Carbon Steel
Color RAL 7035
IP Rating External Circuit IP34, Internal Circuit IP54
Supply Includes Nano-Coated Condenser, Plug-in Terminal Strip, Drilling Template, Assembly Parts
Miniature Circuit-Breaker/Fuse 10A
Supply Voltage Range 115V 1~ 50Hz/60Hz
Rated Current At 60Hz: 5.7A
Temperature Range +10°C to +55°C
Rated Power Pel At 60Hz: 0.5kW
Type Cooler
Height (mm) 550mm (21.65")
Width (mm) 280mm (11.02")
Depth (Length) (mm) 210mm (8.27")
Weight (lbs) 37.48
UOM ea
