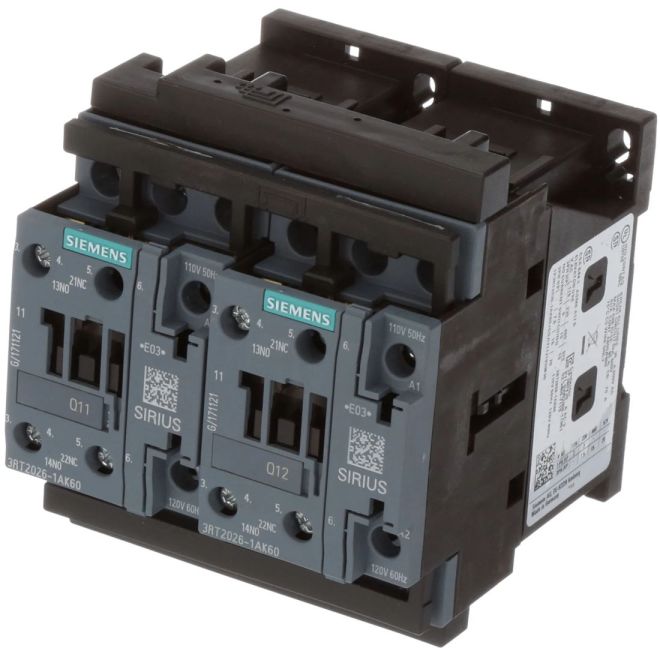

SIEMENS 3RA2326-8XB30-1AK6 Reversing Contactor

SIEMENS 3RA23 reversing contactor assemblies have screw or spring-loaded terminals (main and control circuits) and are suitable for screw fixing and snap-on mounting onto TH 35 standard mounting rails. The fully wired reversing contactor assemblies are suitable for use in any climate. They are finger-safe according to IEC 60529. SIEMENS 3RA2326-8XB30-1AK6 reversing contactor assemblies in sizes S00 to S3 can be ordered as follows: Fully wired and tested, with mechanical and electrical interlock, For all individual parts for customer assembly. The 3RA23 reversing contactor assemblies of size S00 to S3 each consist of two contactors with the same power, with one NC contact (S00) or one NO contact and one NC contact (S0 to S3) in the basic unit. The contactors are mechanically and electrically interlocked (NC contact interlock).
