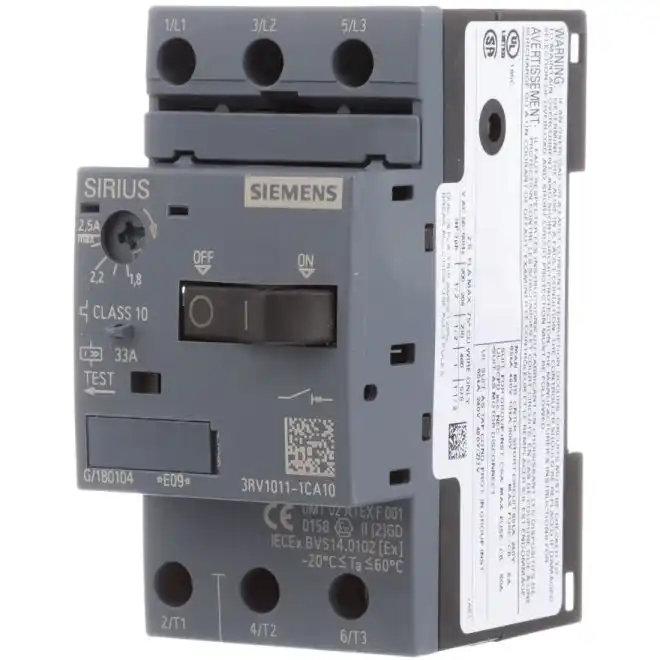

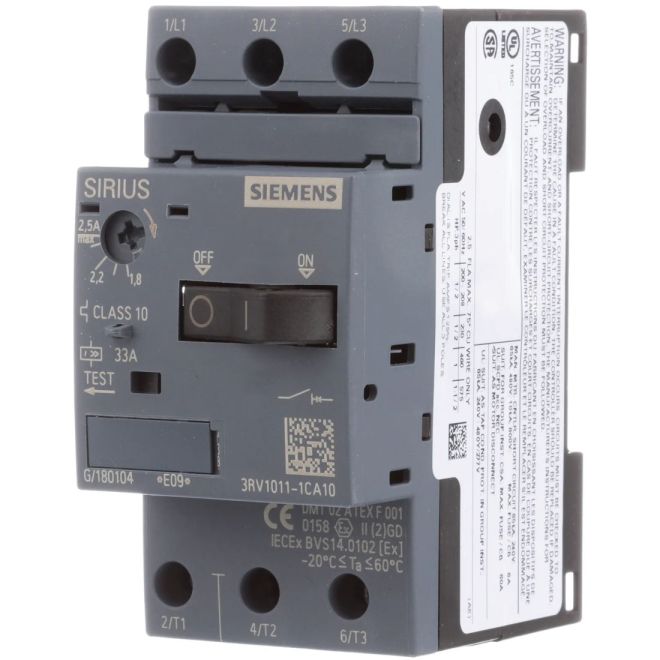

SIEMENS 3RV1011-1CA10 Circuit Breakers 1.8A-2.5A
SKU#:
250575
3RV1 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/ circuit breakers are used according to IEC for switching and protecting three-phase motors of up to 45 kW at 400 V AC and for other loads with rated currents of up to 100 A. SIEMENS 3RV1011-1CA10 manual motor starter protectors/circuit breakers are generally approved according to IEC and UL/CSA. The 3RV1 motor starter protectors/circuit breakers have 3 main contact elements. In order to achieve maximum flexibility, auxiliary switches, signaling switches, auxiliary releases and isolator modules can be supplied separately. SIEMENS 3RV10111CA10 is replaced by 3RV2011-1CA10.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 3RV1011-1CA10 |
| Manufacturer Alternate Number | 3RV10111CA10 |
| UPC | 754554408927 |
| Rated Voltage | 690V |
| Rated Current | 1.8A-2.5A |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Operating Temperature | -20°C - +60°C |
| Number of Poles | 3 |
| Type | Circuit Breaker |
| HP | 1-Phase: 0.167hp at 230VAC, 3-Phase: 0.5hp at 200VAC/208VAC, 0.5hp at 220VAC/230VAC, 1hp at 460VAC/480VAC, 1.5hp at 575VAC/600VAC |
| Duty Cycles | 100,000 |
| Trip Characteristic | CLASS 10 |
| Mounting Type | Screw & Snap-on to DIN-35 Rail |
| Height (mm) | 90mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 75mm |
| Weight (lbs) | 0.60 |
| UOM | ea |
