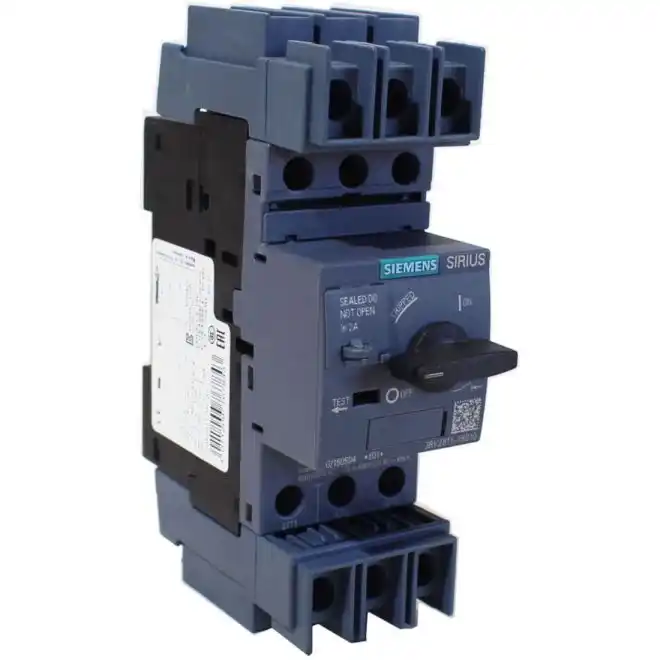

SIEMENS 3RV2811-1BD10 Circuit Breakers S00 2A 42A
SKU#:
486777
The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400VAC and for other loads with rated currents of up to 100A. Thanks to their dimensions, SIEMENS 3RV2811-1BD10 manual motor starter protectors are suitable for installation in enclosures or under cramped installation conditions. The 3RV2 motor starter protectors/circuit breakers can be supplied with screw terminals and spring-loaded terminals.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 3RV2811-1BD10 |
| Manufacturer Alternate Number | 3RV28111BD10 |
| UPC | 662643921991 |
| Rated Voltage | 690V |
| Rated Current | 2A |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Operating Temperature | -20°C - +60°C |
| Number of Poles | 3 |
| Type | Circuit Breaker |
| Duty Cycles | 100,000 |
| Mounting Type | Screw & Snap-on to DIN-35 Rail |
| Height (mm) | 144mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 97mm |
| Weight (lbs) | 1.12 |
| UOM | ea |
