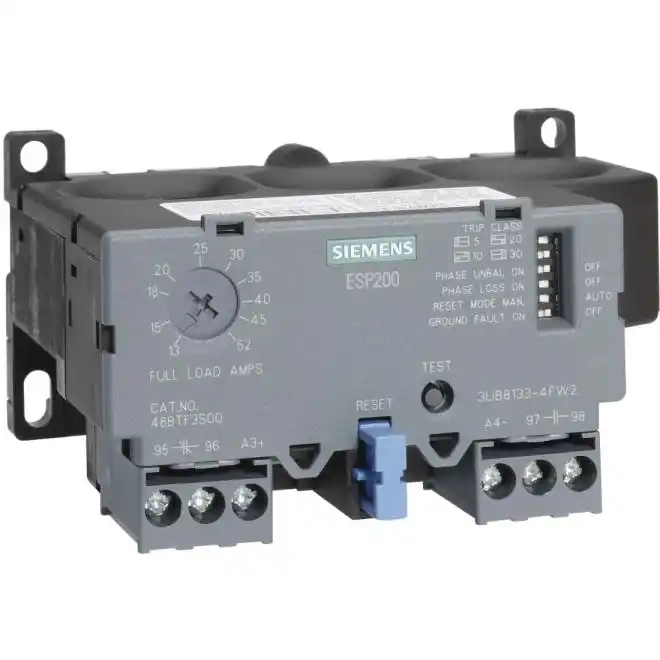

SIEMENS 3UB8133-4FW2 Solid State Overloads 13A-52A
SKU#:
509690
SIEMENS 3UB8133-4FW2 overload relays provide accuracy unmatched in the market. With repeat accuracy of greater than 99%, trips can be set to the most specific conditions, resulting in both longer motor life and cost savings. The ESP200 48BTF3S00 overload relay is so simple to configure. Just set the FLA dial to match the FLA of the motor nameplate and set the DIP switches per the faceplate engraving. If replacing your existing installed ESP100 with the new ESP200, no modifications to the contactor, enclosure or MCC compartment are required.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 3UB8133-4FW2 |
| Manufacturer Alternate Number | 3UB81334FW2 |
| UPC | 662643315721 |
| Rated Voltage | 600V |
| Rated Current | 13A-52A |
| Size | B |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -25°C - +60°C |
| Type | Solid State |
| Height (mm) | 50mm (1.97") |
| Width (mm) | 114mm |
| Weight (lbs) | 0.77 |
| UOM | ea |
