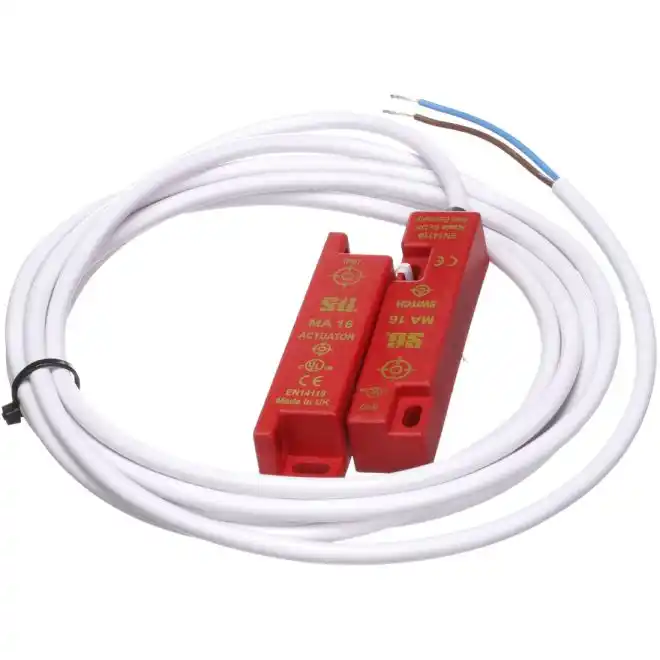

Omron 44507-1610 MA-16DP10C3 Magnetic Door Switch
SKU#:
420950
Omron 44507-1610 MA-16DP10C3 MA series magnetically actuated safety interlock switches offer a Large selection - choose from a large selection of contact configurations housed in plastic to satisfy most application requirements, NEMA 6 enclosure enables the MA Series switches to satisfy most application requirements (MA 3, 4, 5 are NEMA 4), Misalignment tolerant - the non-contact actuation of the switches makes them very tolerant to misalignment of up to 10 mm (0.39 in.), Variety of terminations - select various cable lengths or terminal strip termination for easy installation. Cable connector on selected models. Long life - the MA Series is designed for a minimum of one million actuations, A Rapid Delivery Product: Select models are available for shipment today or within 3 to 5 days.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | 44507-1610 |
| Manufacturer Alternate Number | MA-16DP10C3 |
| UPC | 4548583121263 |
| Actuator Type | Magnet |
| Contact Arrangement | 1 N/C |
| Material | Plastic |
| Height (mm) | 82.5mm |
| Width (mm) | 19mm |
| Depth (Length) (mm) | 3000mm |
| Cable Length | 3m |
| Weight (lbs) | 0.85 |
| UOM | ea |
