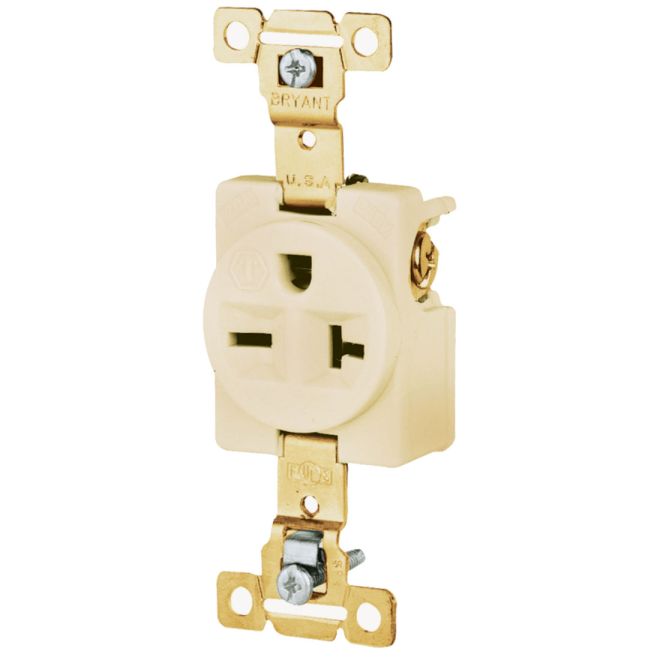

BRYANT 5461I Receptacle 2-Pole 3-Wire 20A 250V 6-20R
SKU#:
203795
BRYANT 5461I one-piece ground system provides a more reliable continuity to ground than riveted designs. Triple-wipe brass line contacts deliver excellent conductivity for low resistance, low heat rise. Superior spring properties provide reliable, long-life blade retention. All nylon, wrap-around, full-face design provides secure assembly, even under stress.
| Brand | BRYANT / Hubbell |
|---|---|
| Manufacturer Part Number | 5461I |
| Manufacturer Alternate Number | 5461-I |
| UPC | 781786174184 |
| Color | White |
| UL Rating Type | NEMA 6-20 |
| Rated Current | 20A |
| Power Phase | 1-Phase |
| Type | Receptacle |
| Number of Pins/Wires | 3 |
| Rated Voltage | 250V |
| Number of Poles | 2 |
| Locking Blade | No |
| Height (mm) | 24mm |
| Width (mm) | 36mm |
| Depth (Length) (mm) | 84mm |
| Weight (lbs) | 0.1 |
| UOM | ea |
