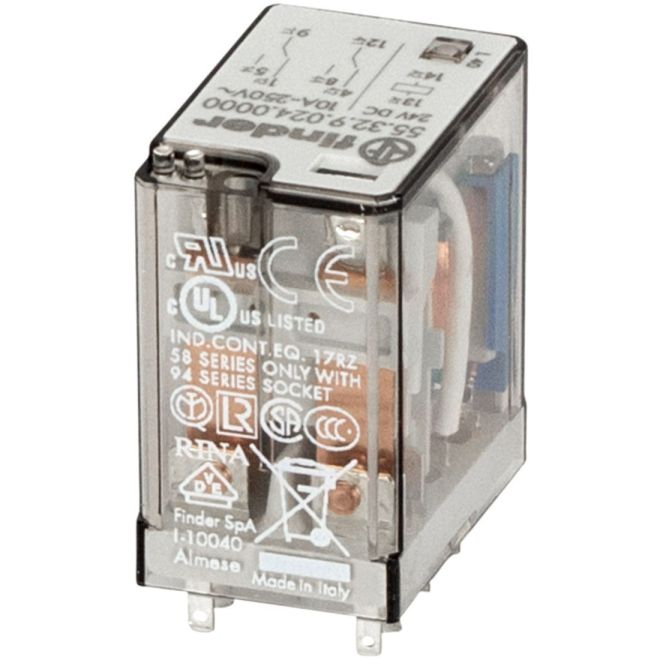

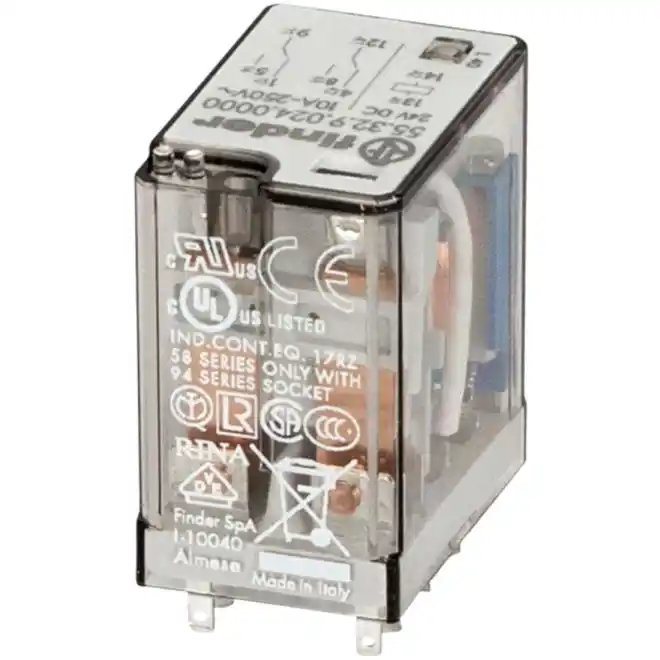

finder 55.32.9.024.0000 Plug-in 2-Pole Relay
SKU#:
132098
Finder 55.32.9.024.0000 is a 2-pole (2P) 10A plug-in mount general-purpose relay with 24V DC coil. Suitable for 94 series sockets and comes with European patent. Finder 55.32 series relay has 2 CO (DPDT - Double pole double throw) cadmium-free standard AgNi (Silver Nickel) contacts. Applications include general switchboard installations, industrial automation panels, auxiliary relays, interfacing. Finder 55.32.9.024.0000 is comparable to Schneider Magnecraft 782XBX2M4L-24D, Omron MY2IN DC24 (S) & MY2N DC24 (S), TURCK Releco C7-A20X/24VDC, IDEC RU2S-M-24D, Relpol Altech R2-2012-23-1024-WTL, Fuji HH52PFL, TE Connectivity Tyco Schrack Potter & Brumfield KHAU-11D12M-24 & KHAU-11D12H-24.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 55.32.9.024.0000 |
| Coil Voltage | 24VDC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Plug-in |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 20 A |
| Rated Current | 10A |
| Max. Switching Power(Resistive) | 2,500VA |
| Max. Switching Power (Inductive) | 500VA |
| Minimum Load | 300mW |
| Operating Temperature | -40°C - +85°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 42.8mm |
| Width (mm) | 27.7mm |
| Depth (Length) (mm) | 20.7mm |
| Weight (lbs) | 0.07 |
| UOM | ea |
