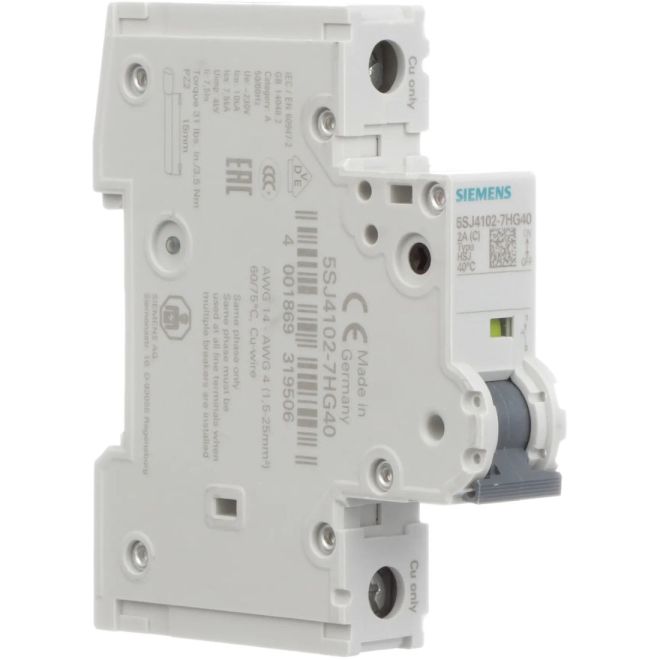

SIEMENS 5SJ4102-7HG40 Miniature Circuit Breaker

SKU#:

566313

SIEMENS 5SJ4102-7HG40 miniature circuit breakers (MCB) are designed to comply with UL 489 and CSA 22.2 No. 5-02 standards. They are used in single pole, branch circuit protection applications up to 240 VAC maximum and 60 VDC maximum, same polarity. SIEMENS 5SJ4 miniature circuit breakers are also CE marked according to IEC/EN 60 898 and IEC/EN 60 947-2 making them suitable for use in international applications. They are provided with a manual means for opening the circuit and they are not ambient compensated.
Specifications
Brand SIEMENS
Manufacturer Part Number 5SJ4102-7HG40
Manufacturer Alternate Number 5SJ41027HG40
UPC 754554932217
Rated Voltage 240VAC
Rated Current 2A
Number of Poles 1
Mounting Type DIN Rail
Electrical Connection Screw Clamp
Operating Temperature -25°C - +55°C
Rated Voltage DC 60VDC
Trip Characteristic Class C
Duty Cycles 20,000
IP Rating IP20
Type Miniature Circuit Breaker
Height (mm) 90mm
Width (mm) 18mm
Depth (Length) (mm) 70mm
Weight (lbs) 0.37
UOM ea
