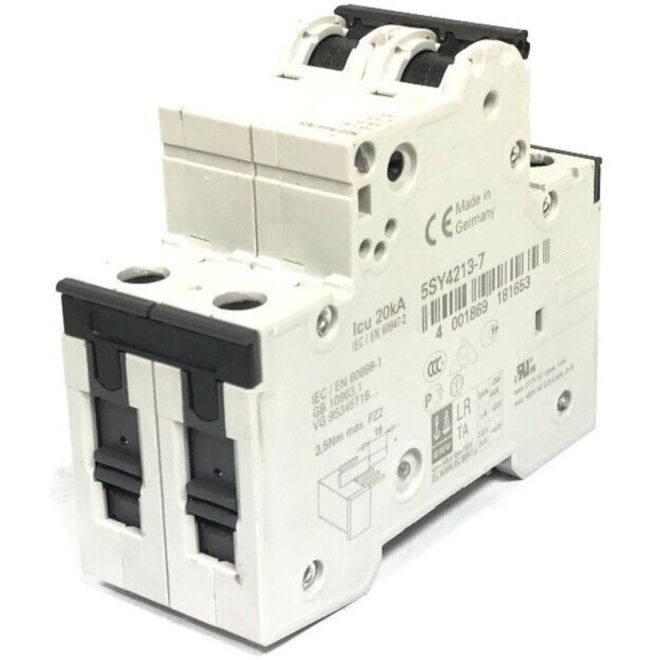

SIEMENS 5SY4213-7 Miniature Circuit Breaker 2-Pole
SKU#:
417580
For circuits with motors or large lamps, semiconductors or strong pulse generating equipment such as transformers and solenoid valves - SIEMENS 5SY and 5SP devices are optimized for industrial applications and are proven in use. SIEMENS 5SY4213-7 devices offer you top quality and functionality for installation in complex buildings and industry. With a rated breaking capacity of up to 25 kA, they are able to handle the most challenging requirements at a rated current of 0.3 to 80 A.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 5SY4213-7 |
| Manufacturer Alternate Number | 5SY42137 |
| UPC | 754554875880 |
| Rated Voltage | 400VAC |
| Rated Current | 13A |
| Number of Poles | 2 |
| Mounting Type | DIN Rail |
| Electrical Connection | Screw Clamp |
| Operating Temperature | -40°C - +70°C |
| Rated Voltage DC | 72VDC |
| Trip Characteristic | Class C |
| Duty Cycles | 10,000 |
| IP Rating | IP20 |
| Type | Miniature Circuit Breaker |
| Height (mm) | 90mm |
| Width (mm) | 36mm |
| Depth (Length) (mm) | 76mm |
| Weight (lbs) | 0.71 |
| UOM | ea |
