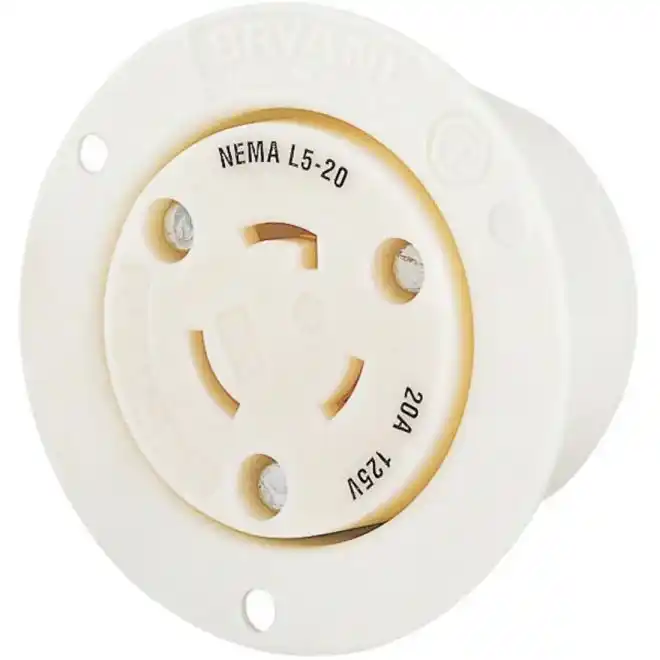

BRYANT 70520ER Industrial Flanged Receptacles 20A
SKU#:
320865
BRYANT's Tech-Spec® plugs and connectors represent some of the industry's most recognized products as well as one of the finest series of plugs and 70520ER receptacles on the market. The quality of the non-slip, wide-ribbed handgrip; heavy-duty double wall housing and tough, impact/chemical resistant nylon construction are second to none. They are easy to assemble and automatically center and secure the cord as the assembly screws are tightened - no external clamps or additional screws are required. An elastomeric dust seal prevents dust, moisture and contaminants from entering the wiring chamber.
| Brand | BRYANT / Hubbell |
|---|---|
| Manufacturer Part Number | 70520ER |
| Manufacturer Alternate Number | 70520-ER |
| UPC | 781786688506 |
| Color | White |
| UL Rating Type | NEMA L5-20 |
| Rated Current | 20A |
| Power Phase | 1-Phase |
| Type | Receptacle |
| Number of Pins/Wires | 3 |
| Rated Voltage | 125V |
| Number of Poles | 2 |
| Locking Blade | Yes |
| Height (mm) | 54.1mm |
| Width (mm) | 54.1mm |
| Depth (Length) (mm) | 99.1mm |
| Weight (lbs) | 0.27 |
| UOM | ea |
