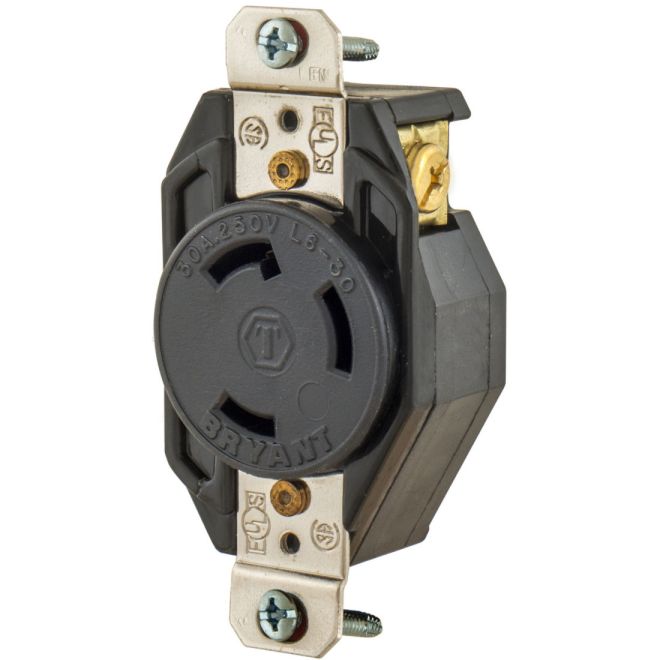

BRYANT 70630FR Industrial Flush Receptacles 30A

SKU#:

203782

BRYANT's Tech-Spec® plugs and connectors represent some of the industry's most recognized products as well as one of the finest series of plugs and 70630FR receptacles on the market. The quality of the non-slip, wide-ribbed handgrip; heavy-duty double wall housing and tough, impact/chemical resistant nylon construction are second to none. They are easy to assemble and automatically center and secure the cord as the assembly screws are tightened - no external clamps or additional screws are required. An elastomeric dust seal prevents dust, moisture and contaminants from entering the wiring chamber.
Specifications
Brand BRYANT / Hubbell
Manufacturer Part Number 70630FR
Manufacturer Alternate Number 70630-FR
UPC 781786689435
Color Black
UL Rating Type NEMA L6-30
Rated Current 30A
Power Phase 1-Phase
Type Receptacle
Number of Pins/Wires 3
Rated Voltage 250V
Number of Poles 2
Locking Blade Yes
Height (mm) 83.3mm
Width (mm) 43.2mm
Depth (Length) (mm) 31.5mm
Weight (lbs) 0.25
UOM ea
