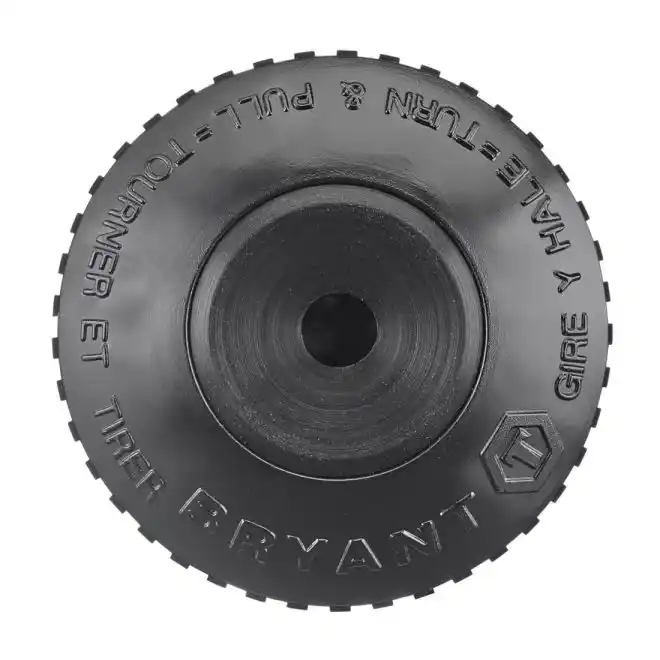

BRYANT 71520NC Connector 20A 3-Phase Delta 250VAC
SKU#:
135813
BRYANT's Tech-Spec® plugs and 71520NC connectors represent some of the industry's most recognized products as well as one of the finest series of plugs and connectors on the market. The quality of the non-slip, wide-ribbed handgrip; heavy-duty double wall housing and tough, impact/chemical resistant nylon construction are second to none. They are easy to assemble and automatically center and secure the cord as the assembly screws are tightened - no external clamps or additional screws are required. An elastomeric dust seal prevents dust, moisture and contaminants from entering the wiring chamber.
| Brand | BRYANT / Hubbell |
|---|---|
| Manufacturer Part Number | 71520NC |
| Manufacturer Alternate Number | 71520-NC |
| UPC | 781786695894 |
| Color | Black, White |
| UL Rating Type | NEMA L15-20R |
| Rated Current | 20A |
| Power Phase | 3-Phase |
| Type | Connector |
| Number of Pins/Wires | 4 |
| Rated Voltage | 250VAC |
| Number of Poles | 3 |
| Locking Blade | Yes |
| Height (mm) | 100mm |
| Width (mm) | 55mm |
| Depth (Length) (mm) | 55mm |
| Weight (lbs) | 0.3 |
| UOM | ea |
