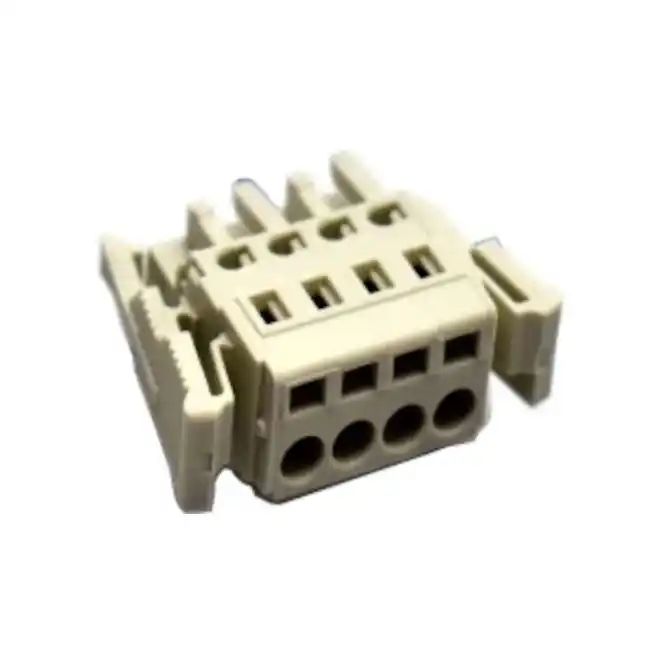

WAGO 721-104/037-000 MCS MIDI Female Plugs Gray
SKU#:
59891
WAGO 721-104/037-000 MCS - MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 721-104/037-000 |
| Manufacturer Alternate Number | 51118014 |
| UPC | 4044918353755 |
| Electrical Connection | CAGE CLAMP® |
| Actuation Type | Operating Tool |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 2.5mm2 / 28 - 12 AWG |
| Fine-Stranded Conductor with Ferrule Wire Range | 0.25mm2 - 1.5mm2 |
| Strip Length | 8mm - 9mm / 0.31 - 0.35 inch |
| Total Number of Connection Points | 4 |
| Total Number of Potentials | 4 |
| Number of Levels | 1 |
| Pin Spacing | 5mm / 0.197 inch |
| Color | Light Gray |
| Number of Poles | 4 |
| Height (mm) | 14.3mm / 0.563 inch |
| Width (mm) | 36.6mm / 1.441 inch |
| Depth (Length) (mm) | 29.6mm / 1.165 inch |
| Weight (lbs) | 0.02 |
| UOM | ea |
