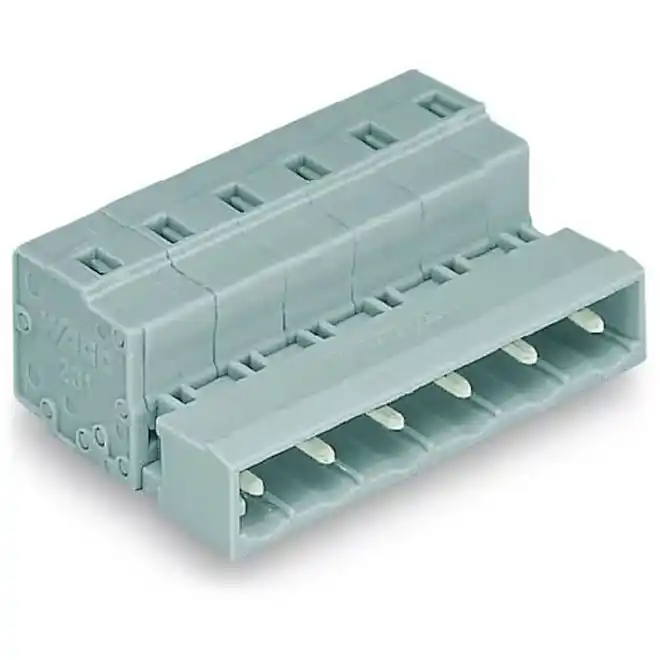

WAGO 731-606 Male Connectors 2.5mm2 Gray
SKU#:
60321
Different applications demand different solutions. WAGO 731-606 offers the widest range of PCB terminal blocks and pluggable connectors for these. For example, the various spring pressure connection technologies allow you to meet your challenges in drive and controller technology or lighting industry quite easily. Your benefits include: Highly diverse variants, Easy and safe use, Permanent, secure conductor termination via spring pressure connection technology, Push-in CAGE CLAMP® and PUSH-WIRE® variants for fast, time-saving termination of solid and ferruled conductors, Seamless integration into your manufacturing process with products for wave/manual (THT) and reflow soldering (THR/SMT).
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 731-606 |
| Manufacturer Alternate Number | 51111654 |
| UPC | 4044918266826 |
| Electrical Connection | CAGE CLAMP® |
| Actuation Type | Operating Tool |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 2.5mm2 / 28 - 12 AWG |
| Fine-Stranded Conductor with Ferrule Wire Range | 0.25mm2 - 1.5mm2 |
| Strip Length | 8mm - 9mm / 0.31 - 0.35 inch |
| Total Number of Connection Points | 6 |
| Total Number of Potentials | 6 |
| Number of Levels | 1 |
| Pin Spacing | 7.5mm / 0.295 inch |
| Color | Gray |
| Number of Poles | 6 |
| Height (mm) | 14.3mm / 0.563 inch |
| Width (mm) | 45.7mm / 1.799 inch |
| Depth (Length) (mm) | 27.5mm / 1.083 inch |
| Weight (lbs) | 0.02 |
| UOM | ea |
