WAGO 734-306 MCSMINI 1-Conductor Male Connectors
SKU#:
60515
Different applications demand different solutions. WAGO 734-306 offers the widest range of PCB terminal blocks and pluggable connectors for these. For example, the various spring pressure connection technologies allow you to meet your challenges in drive and controller technology or lighting industry quite easily. Your benefits include: Highly diverse variants, Easy and safe use, Permanent, secure conductor termination via spring pressure connection technology, Push-in CAGE CLAMP® and PUSH-WIRE® variants for fast, time-saving termination of solid and ferruled conductors, Seamless integration into your manufacturing process with products for wave/manual (THT) and reflow soldering (THR/SMT).
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 734-306 |
| Manufacturer Alternate Number | 51131788 |
| UPC | 4044918513586 |
| Electrical Connection | CAGE CLAMP® |
| Actuation Type | Operating Tool |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 1.5mm2 / 28 - 14 AWG |
| Fine-Stranded Conductor with Ferrule Wire Range | 0.25mm2 - 1.5mm2 |
| Strip Length | 6mm - 7mm / 0.24 - 0.28 inch |
| Total Number of Connection Points | 6 |
| Total Number of Potentials | 6 |
| Number of Levels | 1 |
| Pin Spacing | 3.5mm / 0.138 inch |
| Color | Light Gray |
| Number of Poles | 6 |

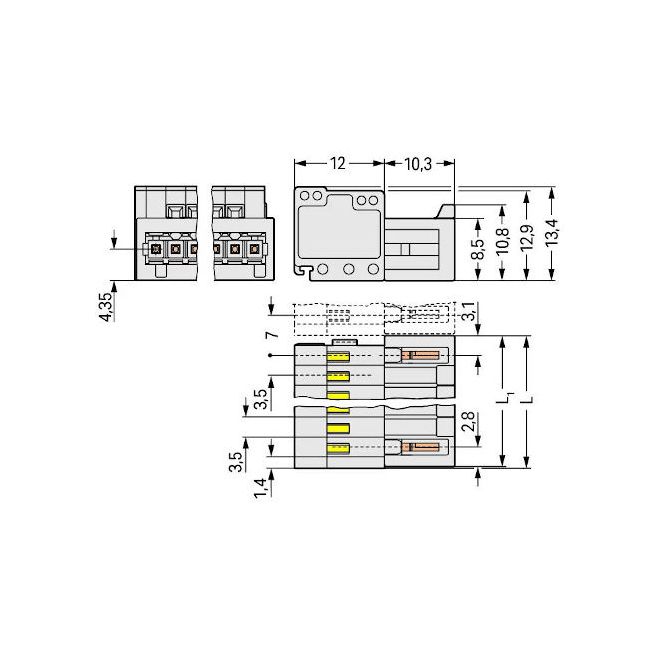

| Height (mm) | 13.4mm / 0.528 inch |
| Width (mm) | 23.4mm / 0.921 inch |
| Depth (Length) (mm) | 22.3mm / 0.878 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
