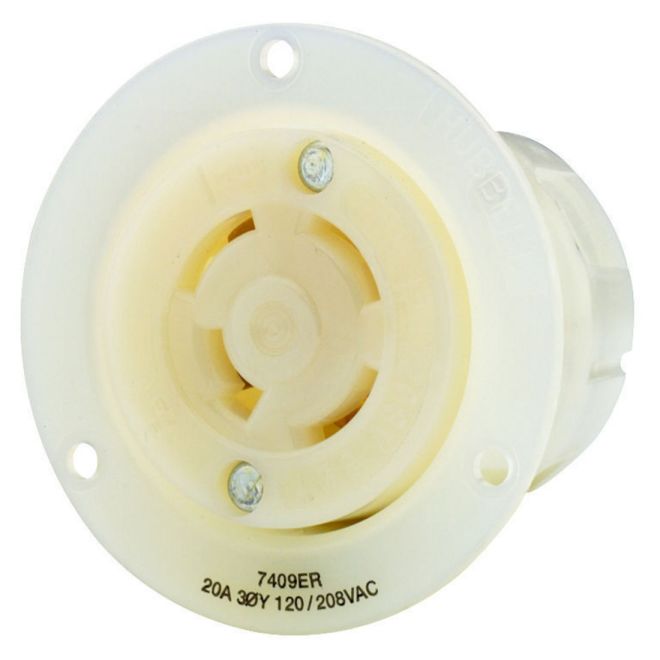

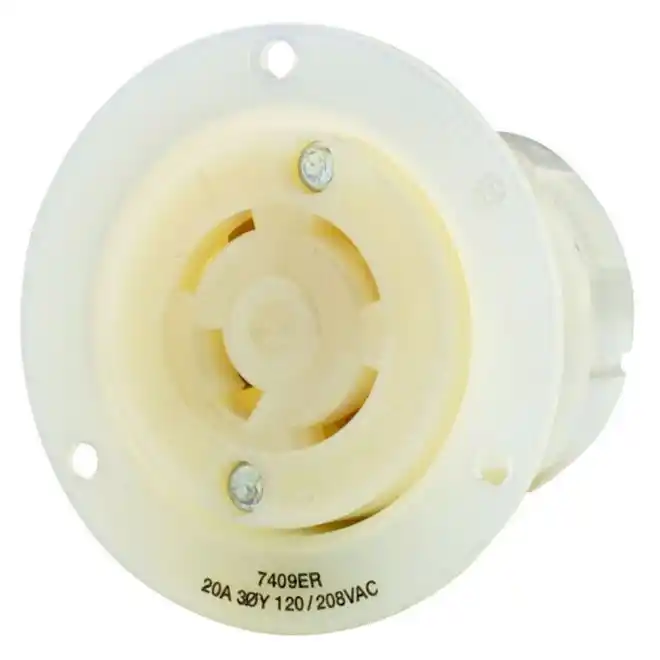

BRYANT 7409 Receptacle 20A 3-Phase Wye 120/208VAC
SKU#:
128042
BRYANT 7409ER Tech-Spec® plugs and connectors represent some of the industry's most recognized products as well as one of the finest series of plugs and connectors on the market. The quality of the non-slip, wide-ribbed handgrip; heavy-duty double wall housing and tough, impact/chemical resistant nylon construction are second to none. They are easy to assemble and automatically center and secure the cord as the assembly screws are tightened - no external clamps or additional screws are required. An elastomeric dust seal prevents dust, moisture and contaminants from entering the wiring chamber.
| Brand | BRYANT / Hubbell |
|---|---|
| Manufacturer Part Number | 7409 |
| Manufacturer Alternate Number | 7409-ER |
| UPC | 781786628342 |
| Color | White |
| Rated Current | 20A |
| Power Phase | 3-Phase |
| Type | Receptacle |
| Number of Pins/Wires | 4 |
| Rated Voltage | 208V |
| Number of Poles | 4 |
| Locking Blade | Yes |
| Height (mm) | 78mm |
| Width (mm) | 78mm |
| Depth (Length) (mm) | 58mm |
| Weight (lbs) | 0.3 |
| UOM | ea |
