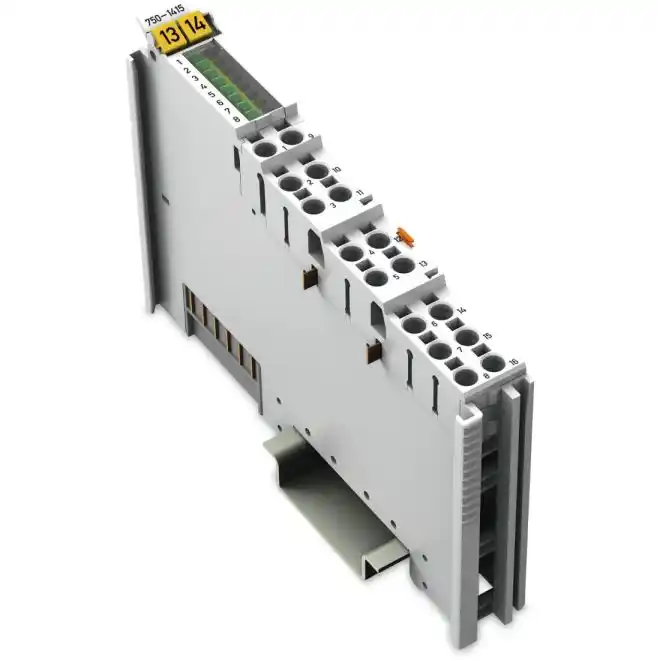

WAGO 750-1415 8-Channel Digital Input 24VDC Gray
SKU#:
431174
WAGO 750-1415 digital input module is a 2-wire device featuring eight channels in a width of just 12 mm (0.47 inch). It receives binary control signals from digital field devices (e.g., sensors, encoders, switches or proximity sensors). The module features Push-in CAGE CLAMP® connections enabling solid conductors to be connected by simply pushing them in. Each input channel has a noise-rejection RC filter with 3.0 ms time constant. A green LED indicates the signal state of each channel. Field and system levels are electrically isolated. An operating tool with a 2.5 mm blade (210-719) is required to open the Push-in CAGE CLAMP® connections.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 750-1415 |
| Manufacturer Alternate Number | 7501415 |
| UPC | 4050821085621 |
| Mounting Type | DIN-35 Rail |
| Supply Voltage Range | 24VDC |
| Type | Voltage |
| Height (mm) | 100mm / 3.937 inch |
| Width (mm) | 12mm / 0.472 inch |
| Depth (Length) (mm) | 69mm / 2.717 inch |
| Weight (lbs) | 0.10 |
| UOM | ea |
