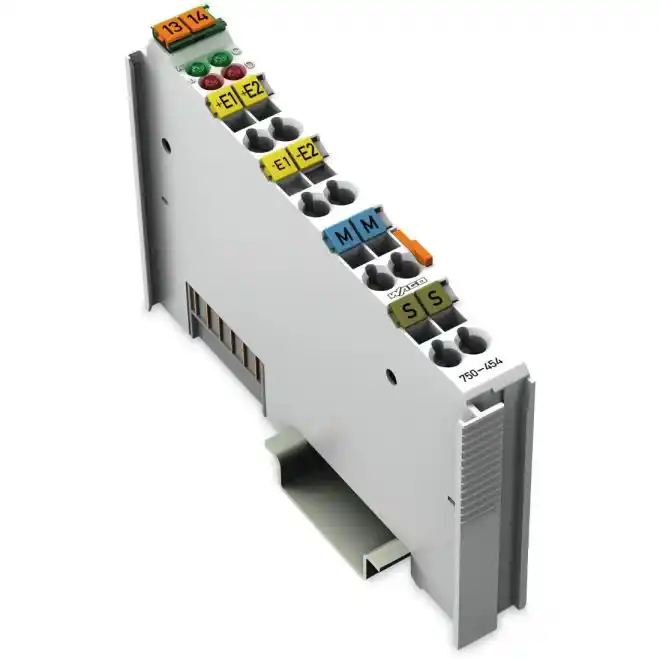

WAGO 750-454 2-Channel Analog Input Modules 4-20mA
SKU#:
60914
WAGO 750-454 analog input module processes standard 4-20 mA signals. The input signal is electrically isolated and is transmitted with a resolution of 12 bits. The internal system supply powers the module. The input channels of the module are differential inputs. The shield directly connects to the DIN-rail.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 750-454 |
| Manufacturer Alternate Number | 51186987 |
| UPC | 4045454483098 |
| Mounting Type | DIN-35 Rail |
| Supply Voltage Range | 5VDC |
| Type | Current |
| Height (mm) | 100mm / 3.937 inch |
| Width (mm) | 12mm / 0.472 inch |
| Depth (Length) (mm) | 69.8mm / 2.748 inch |
| Weight (lbs) | 0.11 |
| UOM | ea |
