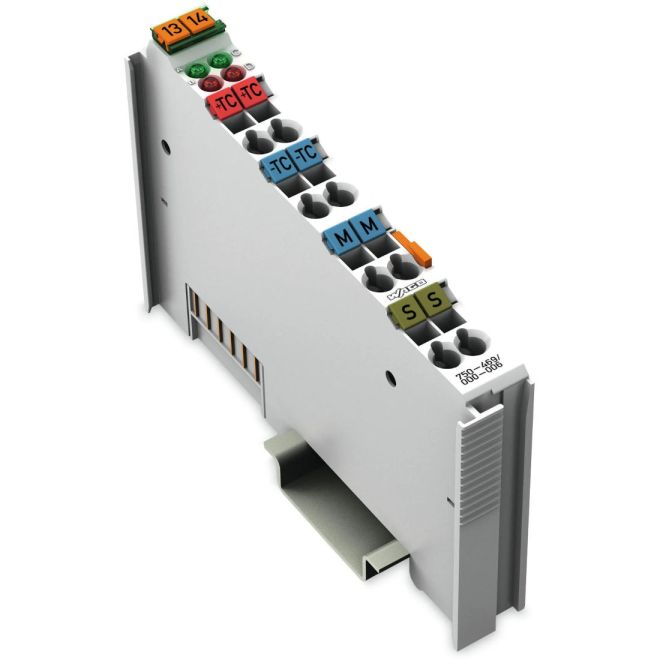

WAGO 750-469/000-006 2-Channel Analog Input Module
SKU#:
210804
WAGO 750-469/000-006 analog input module directly connects to two thermocouples. Internal electrical isolation allows operation of grounded sensors. The module automatically linearizes the entire temperature range. Cold junction compensation mitigates the clamping unit offset voltage over the 0-55°C operating range. A line break is indicated by a red LED. A green LED indicates readiness for operation and error-free communication with the coupler. The shield directly connects to the DIN-rail.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 750-469/000-006 |
| Manufacturer Alternate Number | 51180818 |
| UPC | 4045454393120 |
| Mounting Type | DIN-35 Rail |
| Supply Voltage Range | 5VDC |
| Type | Thermocouple |
| Height (mm) | 100mm / 3.937 inch |
| Width (mm) | 12mm / 0.472 inch |
| Depth (Length) (mm) | 69.8mm / 2.748 inch |
| Weight (lbs) | 0.11 |
| UOM | ea |
