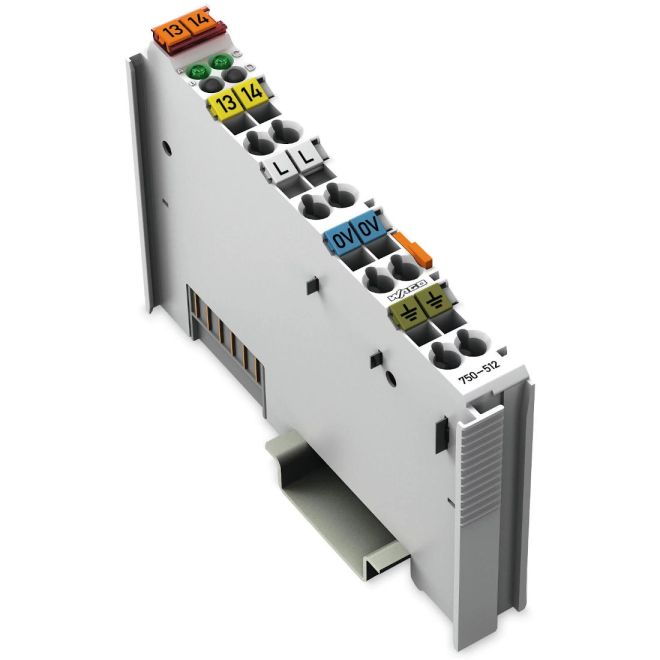

WAGO 750-512 2-Channel Relay Output 2.0A Gray
SKU#:
60940
WAGO 750-512 2-channel relay output; AC 250 V; 2.0 A; 2 make contact; light gray digital output module transmits control signals from the automation device to the connected actuators. The internal system voltage triggers the relay. Note that the power jumper contacts supply both "N" (common point) and switched output voltages (this may be DC or AC). The state of the relay is indicated by a LED. Notice: An additional supply module must be added for 250 VAC/30 VDC supply!
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 750-512 |
| Manufacturer Alternate Number | 51183048 |
| UPC | 4045454428938 |
| Mounting Type | DIN-35 Rail |
| Supply Voltage Range | 5VDC |
| Type | Relays |
| Number of Points | 2 |
| Height (mm) | 100mm / 3.937 inch |
| Width (mm) | 12mm / 0.472 inch |
| Depth (Length) (mm) | 69.8mm / 2.748 inch |
| Weight (lbs) | 0.11 |
| UOM | ea |
