WAGO 750-601 Power Supply 24VDC Fuse Holder Gray
SKU#:
60956

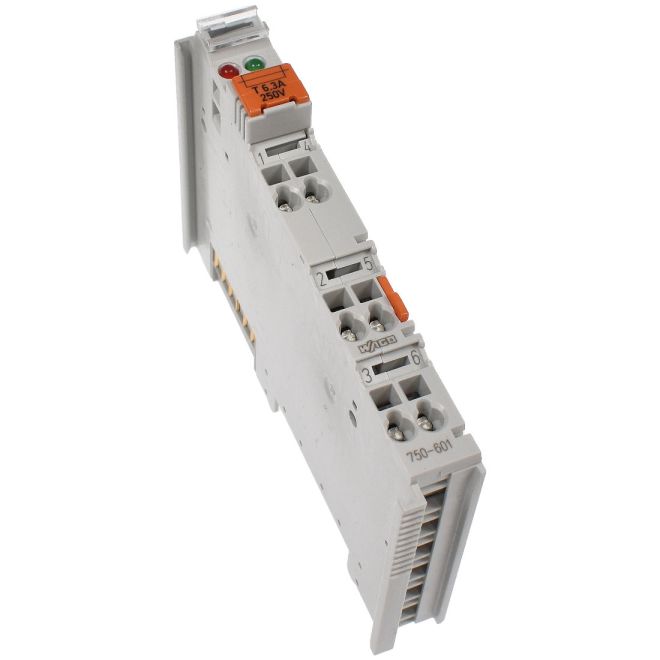

WAGO 750-601 supply module provides field-side power via the power jumper contacts. The maximum current provided by the supply module is 6.3 A. When configuring the system, the total current must not be exceeded. Should higher currents be necessary, an intermediate supply module must be added to the assembly. The supply module can be fuse-protected (5 x 20 mm). The fuse can be changed quickly, with ease, from the retractable fuse carrier. A blown fuse is indicated by a LED.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 750-601 |
| Manufacturer Alternate Number | 51182227 |
| UPC | 4045454415297 |
| Mounting Type | DIN-35 Rail |
| Supply Voltage Range | 5VDC |
| Type | Voltage |
| Height (mm) | 100mm / 3.937 inch |
| Width (mm) | 12mm / 0.472 inch |
| Depth (Length) (mm) | 69.8mm / 2.748 inch |
| Weight (lbs) | 0.10 |
| UOM | ea |
