WAGO 750-613 System Power Supply 24VDC Light Gray
SKU#:
60962

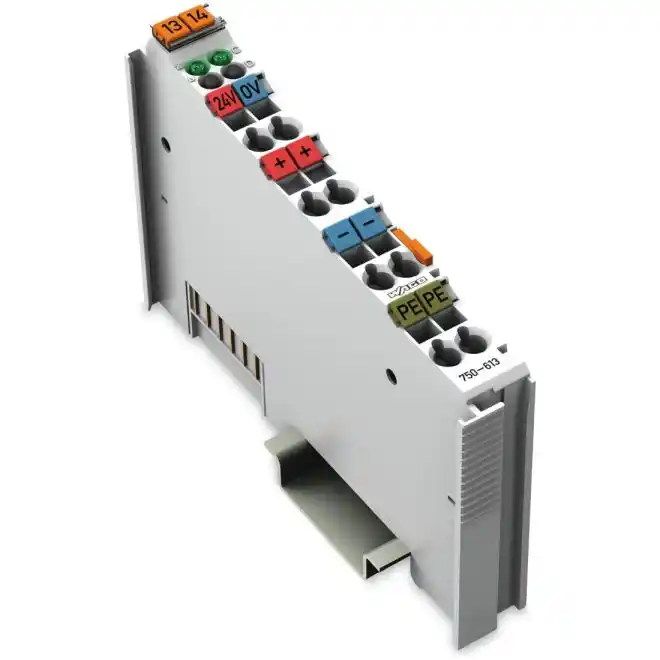

WAGO 750-613 internal system supply module increases the capacity of the system supply by 2 A for fieldbus nodes with high current requirements (sum of the internal current consumption of the I/O modules). If the internal power consumption of all modules is higher than 2 A, an additional supply module must be added. The module also supplies field-side power to the adjacent modules via the power jumper contacts.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 750-613 |
| Manufacturer Alternate Number | 51180888 |
| UPC | 4045454393823 |
| Mounting Type | DIN-35 Rail |
| Supply Voltage Range | 24VDC |
| Type | Voltage |
| Height (mm) | 100mm / 3.937 inch |
| Width (mm) | 12mm / 0.472 inch |
| Depth (Length) (mm) | 69.8mm / 2.748 inch |
| Weight (lbs) | 0.12 |
| UOM | ea |
