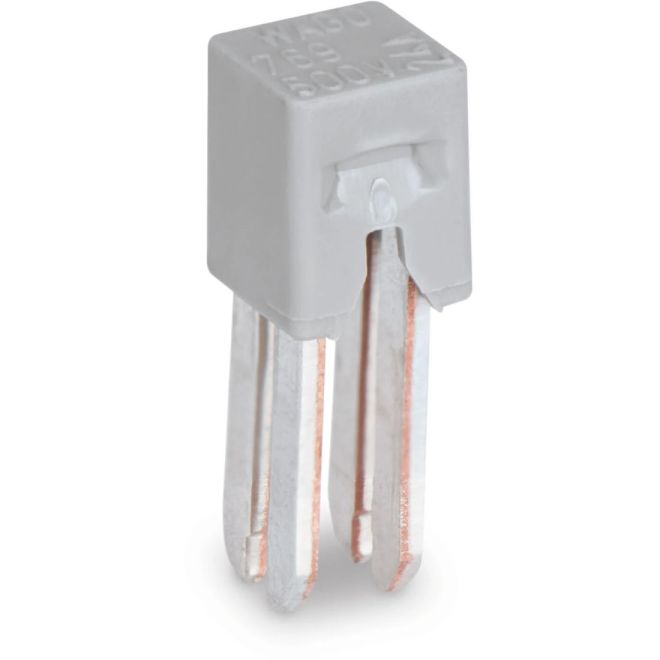

WAGO 769-402 X-COM Jumpers Insulated Gray

SKU#:

61008

The WAGO 769-402 X-COM®S-SYSTEM is available in two different cross-sections (2020 and 2022 Series). It is compatible with our TOPJOB®S Rail-Mount Terminal Blocks and the wide range of accessories from the TOPJOB®S Rail-Mount Terminal Block family. Advantages include: Terminate conductors up to 1.5 mm2 (16 AWG) in a terminal block width of just 3.5 mm (0.138 inch) and up to 4 mm2 (12 AWG) in a width of just 5.2 mm (0.205 inch), Push-in CAGE CLAMP® for fast wiring, Push-in termination of solid and stranded conductors, as well as fine-stranded conductors with ferrules, Prevent mismating by coding groups with the same pole numbers, Secure female plugs via locking levers and strain relief plates.
Specifications
Brand WAGO
Manufacturer Part Number 769-402
Manufacturer Alternate Number 51110535
UPC 4044918255417
Rated Current 24A
Color Gray
Width (mm) 5mm / 0.197 inch
Depth (Length) (mm) 5mm (0.196")
Weight (lbs) 0.01
UOM ea
