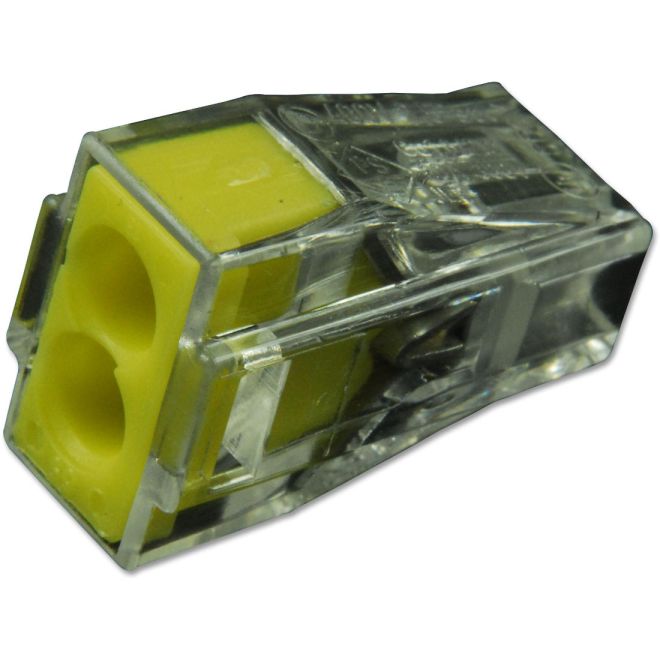

WAGO 773-102 PUSH WIRE® Connector Junction Boxes
SKU#:
142932
WAGO 773-102/VE00-2500 product range supports a wide cross section: The 243 Series MICRO PUSH WIRE® Connectors are specially designed for low-voltage installations. The 773 Series connects conductors up to 12/10 AWG (4/6 mm2). The 2773 Series is aimed to help with higher voltage applications within compact spaces. Advantages include: Safety of contact due to low insertion and high retention forces, Fast wiring via push-in termination of solid conductors, Tool-free conductor terminations, Perfect for distribution applications thanks to mounting carrier, Color-coded for quick identification, Transparent housing to visually verify proper conductor insertion.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 773-102/VE00-2500 |
| Manufacturer Alternate Number | 51204475 |
| UPC | 4045454749668 |
| Electrical Connection | PUSH WIRE® |
| Actuation Type | Push-in |
| Fine-Stranded Conductor Wire Range | 1.5mm2 - 2.5mm2 / 16 - 12 AWG |
| Strip Length | 12mm / 0.47 inch |
| Total Number of Connection Points | 2 |
| Total Number of Potentials | 1 |
| Color | Yellow |
| Height (mm) | 13.1mm / 0.516 inch |
| Width (mm) | 9.2mm / 0.362 inch |
| Depth (Length) (mm) | 19.5mm / 0.768 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
