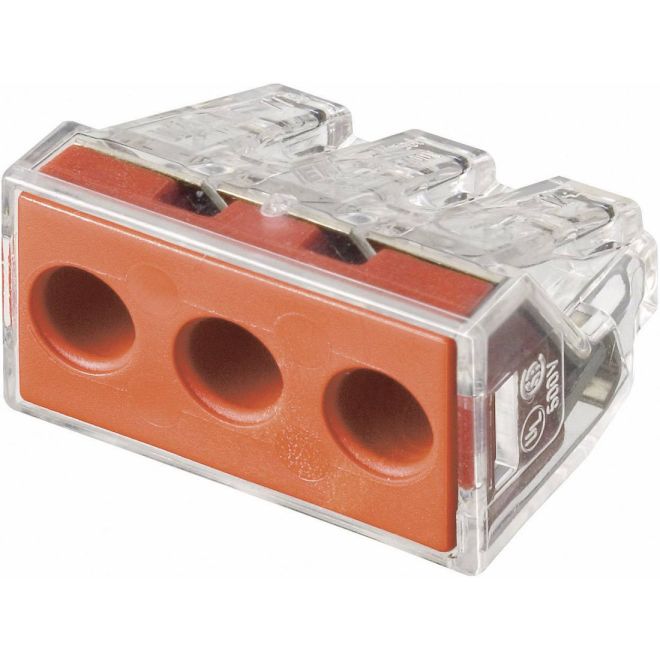

WAGO 773-173 PUSH WIRE® Connector Junction Boxes
SKU#:
320684
WAGO 773-173/K194-4045 product range supports a wide cross section: The 243 Series MICRO PUSH WIRE® Connectors are specially designed for low-voltage installations. The 773 Series connects conductors up to 12/10 AWG (4/6 mm2). The 2773 Series is aimed to help with higher voltage applications within compact spaces. Advantages include: Safety of contact due to low insertion and high retention forces, Fast wiring via push-in termination of solid conductors, Tool-free conductor terminations, Perfect for distribution applications thanks to mounting carrier, Color-coded for quick identification, Transparent housing to visually verify proper conductor insertion.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 773-173/K194-4045 |
| Manufacturer Alternate Number | 51239126 |
| UPC | 4050821215158 |
| Electrical Connection | PUSH WIRE® |
| Actuation Type | Push-in |
| Fine-Stranded Conductor Wire Range | 2.5mm2 - 6mm2 / 14 - 10 AWG |
| Strip Length | 12mm - 13mm / 0.47 - 0.51 inch |
| Total Number of Connection Points | 3 |
| Total Number of Potentials | 1 |
| Color | Red |
| Height (mm) | 14.2mm / 0.559 inch |
| Width (mm) | 25.6mm / 1.008 inch |
| Depth (Length) (mm) | 20.1mm / 0.791 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
