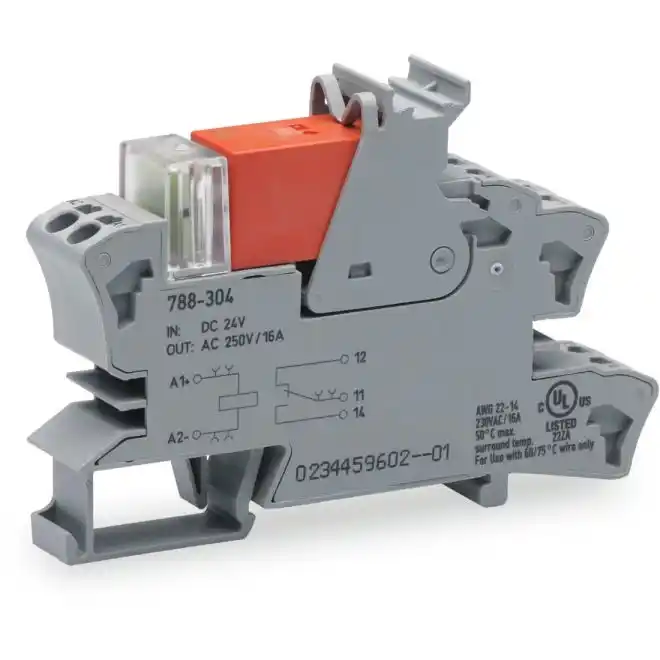

WAGO 788-304 Relay Modules Voltage 24VDC Gray
SKU#:
280250
WAGO 788-304 pluggable PCB relay modules provide and excellent cost-effective platform for industrial and process automation applications. A robust, easy-to-use lever simplifies replacement. Features include: Relays with SPDT (1 C/O) or DPDT (2 C/O), Up to 16 A and 250 V of switching power, DIN rail mount, Pluggable LED indicator, Integrated test ports, Marking options. WAGO 788-304 is comparable to TE Connectivity Schrack RT314024.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 788-304 |
| Manufacturer Alternate Number | 51309396 |
| UPC | 4055143184113 |
| Coil Voltage | 24VDC |
| Indicator | LED |
| Max. Switching Voltage | 250 VAC |
| Rated Load (Resistive) | 30A |
| Max. Switching Power(Resistive) | 4,000 VA |
| Minimum Load | 10 mA at 12V |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 30,000,000 |
| Height (mm) | 54mm / 2.126 inch |
| Width (mm) | 15mm / 0.591 inch |
| Depth (Length) (mm) | 86mm / 3.386 inch |
| Weight (lbs) | 0.10 |
| UOM | ea |
