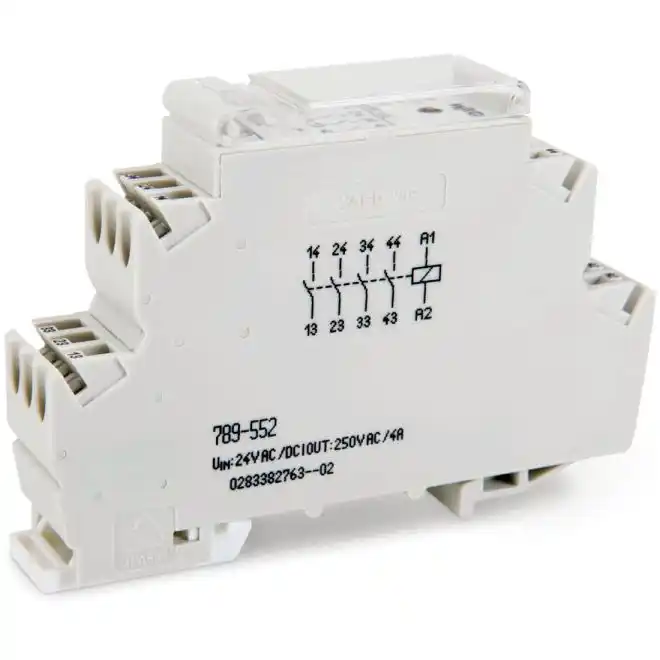

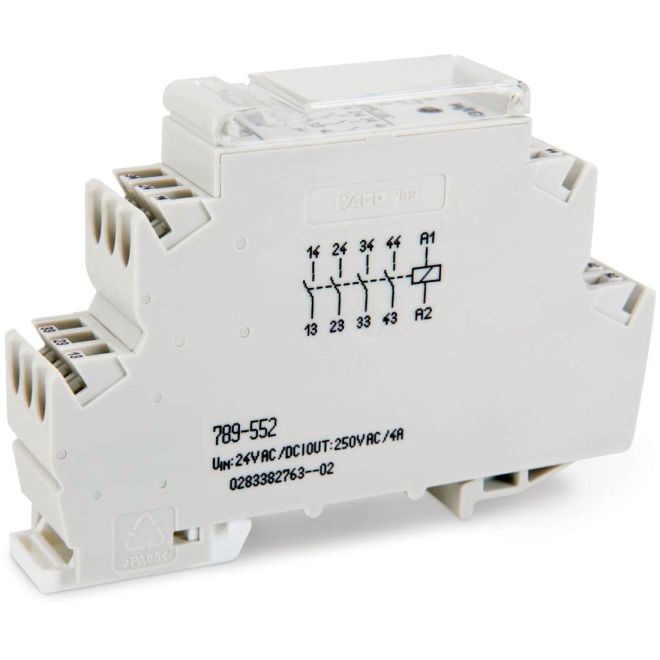

WAGO 789-552 Relay Modules Voltage 24VAC/DC Gray
SKU#:
309863
WAGO 789-552 switching relays serve a wide variety of applications, from basic lighting control - homes, hotels and commercial structures - to comprehensive industrial control cabinets. Just 17.5 mm (0.689 inch) wide, the compact DIN-rail-mount enclosure is ideal for distribution boards and meter cabinets.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 789-552 |
| Manufacturer Alternate Number | 7890552 |
| UPC | 4017332929738 |
| Coil Voltage | 24VDC/24VAC |
| Mounting Type | DIN-35 Rail |
| Indicator | LED |
| Max. Switching Voltage | 250 VAC |
| Rated Load (Resistive) | 4A |
| Max. Switching Power(Resistive) | 1,000 VA |
| Minimum Load | 10 mA |
| Operating Temperature | -40°C - +70°C |
| Height (mm) | 90mm / 3.543 inch |
| Width (mm) | 17.5mm / 0.689 inch |
| Depth (Length) (mm) | 55mm / 2.165 inch |
| Weight (lbs) | 0.11 |
| UOM | ea |
