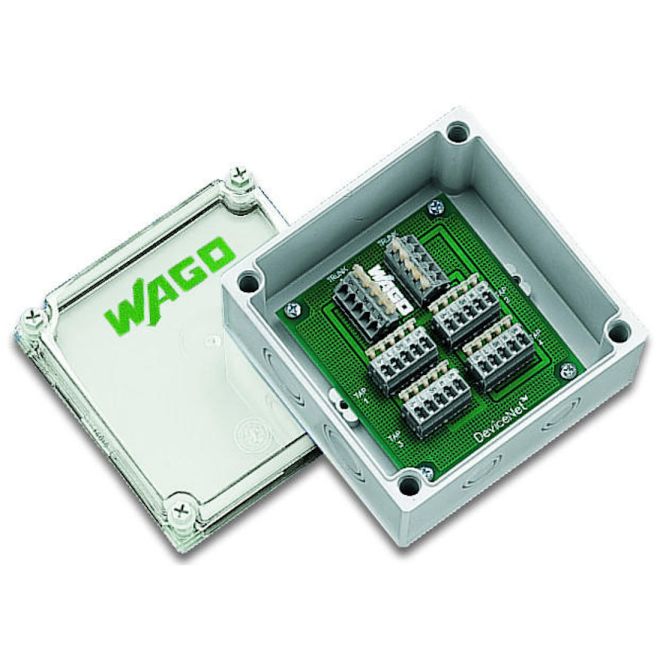

WAGO 810-900/000-001 Interface Modules
SKU#:
61149
For DeviceNet, a terminating resistor must be connected to each end of the trunk cable via WAGO 810-900/000-001 interface module. A metal film resistor with the following values must be used: 121 Ohm ± 1 %, ¼ W. Do not connect terminating resistors to the end of a drop cable, only connect to the ends of the trunk cable.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 810-900/000-001 |
| Manufacturer Alternate Number | 51281485 |
| UPC | 4050821750451 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 2.5mm2 / 28 - 12 AWG |
| Height (mm) | 125mm / 4.921 inch |
| Width (mm) | 125mm / 4.921 inch |
| Weight (lbs) | 0.92 |
| UOM | ea |
