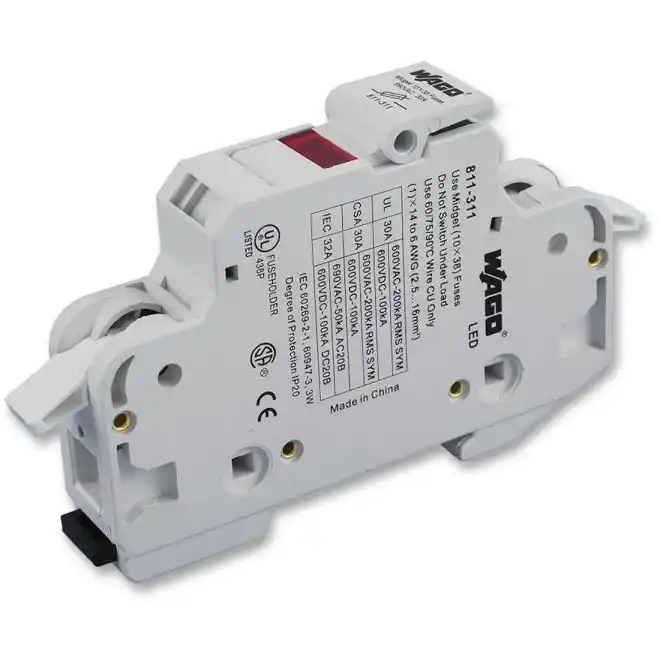

WAGO 811-311 Fuse Terminals Light Gray
SKU#:
419602
Complete with CAGE CLAMP® technology, the 811-311 fuse holder maintains WAGO's legacy of reliability and ease of use. These Class CC and Midget style fuse holders provide maintenance-free, vibration-proof, and corrosion-resistant connections. Lever actuation makes for a user-friendly experience, further simplifying installation in applications such as motor control, power distribution, HVAC, solar, and more.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 811-311 |
| Manufacturer Alternate Number | 8110311 |
| UPC | 4050821508090 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 2.5mm2 - 16mm2 / 16 - 6 AWG |
| Total Number of Connection Points | 2 |
| Total Number of Potentials | 1 |
| Strip Length | 12mm - 13mm / 0.47 - 0.51 inch |
| Number of Levels | 1 |
| Type of Wiring | Side-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Light Gray |
| Height (mm) | 55mm / 2.165 inch |
| Width (mm) | 17.5mm / 0.689 inch |
| Depth (Length) (mm) | 105mm / 4.134 inch |
| Weight (lbs) | 0.22 |
| UOM | ea |
