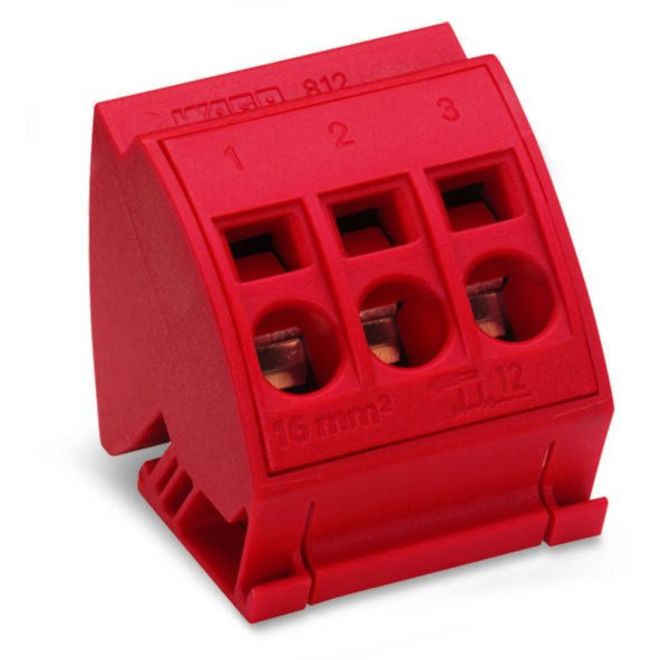

WAGO 812-113 Busbar Terminal Block 3-Pole
SKU#:
310016
Using WAGO 812-113 Series Busbar Terminal Blocks in switchgear cabinets and distribution boards permits simple and safe potential distribution on standard 10 x 3 mm busbars. Tool-free snapping of self-locking busbar terminal blocks onto the busbar enables quick and easy assembly, as well as subsequent extension. The busbar terminal blocks are available in two different versions for conductors ranging from 1.5mm2 - 16mm2 (16AWG - 6AWG). Current carrying capacity: With a maximum total current of 96 A, the clamping units of the busbar terminal block can be loaded with the rated current of the conductor cross-sections approved. This only applies when 10 x 3mm busbars are used.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 812-113 |
| Manufacturer Alternate Number | 51156520 |
| UPC | 4045454014919 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 1.5mm2 - 16mm2 / 14 - 6 AWG |
| Total Number of Connection Points | 3 |
| Total Number of Potentials | 3 |
| Strip Length | 12mm / 0.47 inch |
| Number of Levels | 1 |
| Type of Wiring | Front-Entry Wiring |
| Color | Red |
| Height (mm) | 42.5mm / 1.673 inch |
| Width (mm) | 38mm / 1.496 inch |
| Depth (Length) (mm) | 43.5mm / 1.713 inch |
| Weight (lbs) | 0.09 |
| UOM | ea |
