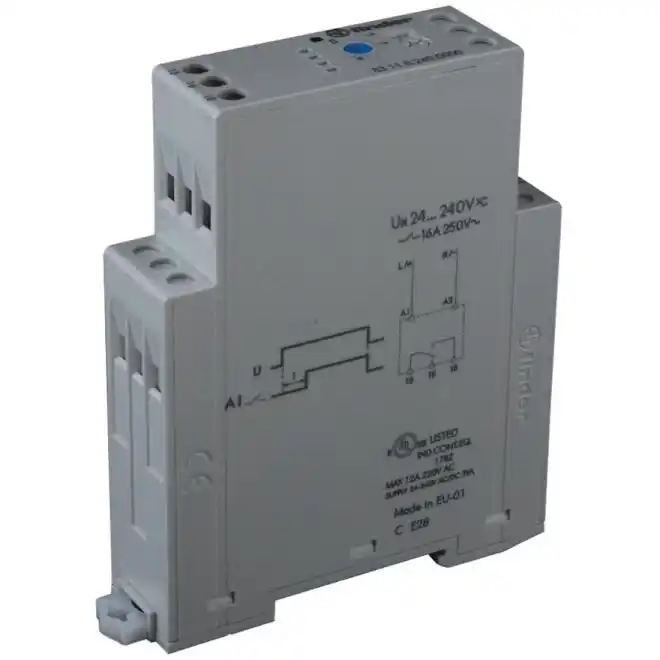

finder 83.11.0.240.0000 On-Delay Timer
SKU#:
429326
Finder 83.11.0.240.0000 is an on-delay 1-pole (1P) 1CO (SPDT - Single pole double throw) 240V AC modular timer with eight-time scales from 0.05 seconds to 10 days delay. Blade + cross or both flat blade and cross head screw drivers can be used on modular timer to adjust the range and function selectors, the timing trimmer and to disengage the rail mounting clip. Applications include packaging machines, pump control panels and pumping units, industrial refrigeration, discotheques, swimming pools, and fountains, industrial furnaces and ovens, confectionery machines, control panels and distribution, automatic car-washes. Finder 83.11.0.240.0000 is comparable to Finder 87.11.0.240.0000.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 83.11.0.240.0000 |
| UPC | 8012823327983 |
| Supply Voltage Range | 24VAC/24VDC - 240VAC/240VDC |
| Contact Arrangement | SPDT (1 Form C) |
| Time Ranges | 0.05Sec - 240Hrs |
| ON-Delay Mode | Yes |
| Output Type | 1 CO (SPDT) |
| Input Type | Voltage Input |
| Mounting Type | DIN Rail |
| Electrical Connection | Screw Terminals |
| Height (mm) | 86.2mm |
| Width (mm) | 22.5mm |
| Depth (Length) (mm) | 100.3mm |
| Weight (lbs) | 0.28 |
| UOM | ea |
