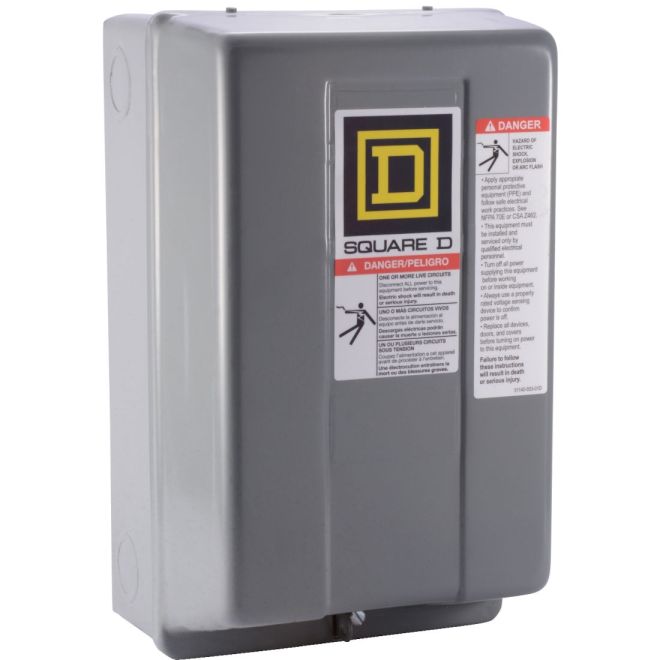

Square D 8502SCG1V02 NEMA Contactors Type S 27A
SKU#:
97936
Schneider Electric Class 8502 Type S magnetic contactors are used to switch heating loads, capacitors, transformers and electric motors where overload protection is provided separately. Square D Class 8502 contactors are available in NEMA Sizes 00 to 7. Telemecanique 8502SCG1V02 Type S contactors are designed for operation up to a 600 V, 50Hz to 60 Hz.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | 8502SCG1V02 |
| UPC | 785901018612 |
| Rated Voltage | 600VAC |
| Coil Voltage | 110VAC - 120VAC |
| Rated Current | 27A |
| Number of Poles | 2 |
| Size | 1 |
| Electrical Connection | Screw Terminals |
| HP | 1-Phase: 2hp 115VAC, 3hp at 230VAC |
| Type | Non-Reversing Contactor |
| Height (mm) | 254mm |
| Width (mm) | 152mm |
| Depth (Length) (mm) | 134mm |
| Weight (lbs) | 0.50 |
| UOM | ea |
