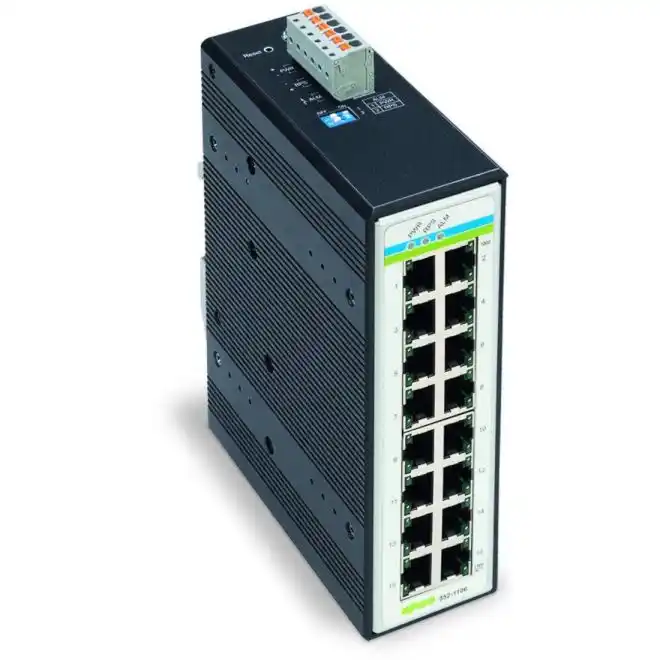

WAGO 852-1106 Industrial Unmanaged Switch 16 Ports
SKU#:
568843
WAGO 852ā1106 Industrial Switch is a 16-port 10/100/1000BaseāT ETHERNET switch. The switch has a rugged metal housing, redundant power supply and function monitoring with a relay. These functions and an operating range of ā40 to +70°C make it ideal for a wide range of industrial applications.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 852-1106 |
| Manufacturer Alternate Number | 60335973 |
| UPC | 4055143604659 |
| Switching Mode | StoreāandāForward; Non-Blocking |
| Number of Ports | 16 |
| MAC Table (Size) | 8000 Addresses |
| Supply Voltage Range | 12VDC - 60VDC |
| Power Consumption | 12 W |
| Communications | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/FX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet, IEEE 802.1p Prioritization |
| Type | Unmanaged Switch |
| Baud Rate | Copper Cable: 10/1000 Mbit/s |
| Material | Aluminum |
| Color | Black |
| Mounting Type | DIN-35 Rail |
| IP Rating | IP30 |
| Height (mm) | 162mm / 6.378 inch |
| Width (mm) | 50mm / 1.969 inch |
| Depth (Length) (mm) | 120mm / 4.724 inch |
| Weight (lbs) | 1.85 |
| UOM | ea |
