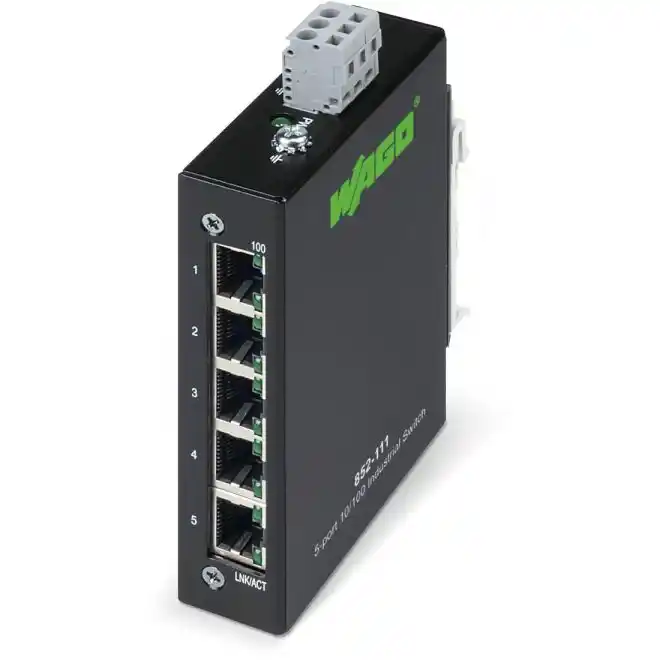

WAGO 852-111 Industrial Unmanaged Switches 5 Ports
SKU#:
408081
WAGO 852ā111 Industrial ECO Switch is a 5-port 10/100BaseāTX ETHERNET switch supporting autonegotiation and Auto-MDI-/MDI-X detection for each port. The 852-111 5-port density can be used to create multiple segments to alleviate client congestion and provide dedicated bandwidth to each user node. The 852-111 Switch is a cost-effect solution to keep up with the constant demands of IP-based, industrial communication needs. The switch is easy to configure and install and is best suited for small to medium-sized networks.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 852-111 |
| Manufacturer Alternate Number | 8520111 |
| UPC | 4045454847593 |
| Switching Mode | StoreāandāForward; Non-Blocking |
| Number of Ports | 5 |
| MAC Table (Size) | 2000 Addresses |
| Supply Voltage Range | 18VDC - 30VDC |
| Power Consumption | 3 W |
| Communications | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.1p Prioritization |
| Type | Unmanaged Switch |
| Baud Rate | Copper Cable: 10/100 Mbit/s |
| Material | Sheet Steel |
| Color | Black |
| Mounting Type | DIN-35 Rail |
| IP Rating | IP30 |
| Topology | Star |
| Height (mm) | 109.2mm / 4.299 inch |
| Width (mm) | 23.4mm / 0.921 inch |
| Depth (Length) (mm) | 73.8mm / 2.906 inch |
| Weight (lbs) | 0.78 |
| UOM | ea |
