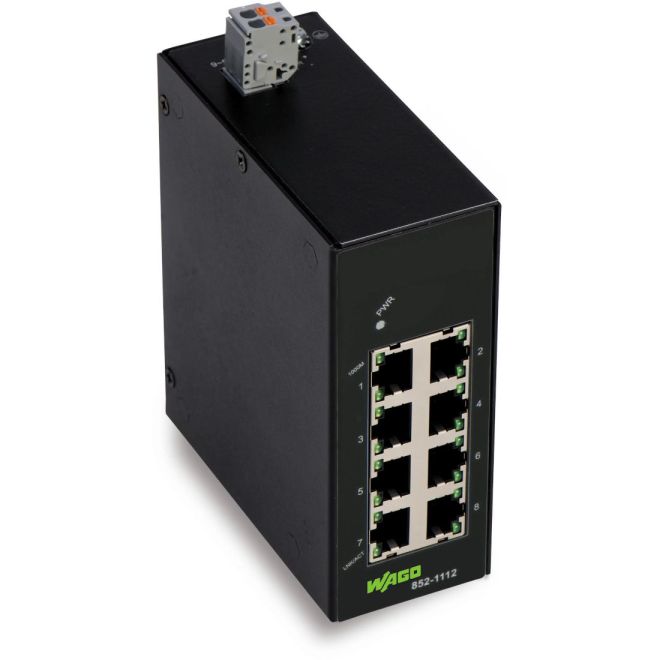

WAGO 852-1112 Industrial Unmanaged Switches 8 Port
SKU#:
566095
WAGO 852-1112 Industrial ECO Switch is an 8-port 1000Base-T ETHERNET switch supporting autonegotiation and Auto-MDI-/MDI-X detection for each port. Using the switch's eight ports, several segments can be created to reduce the network load, while providing a dedicated bandwidth to each user node. The 852-1112 is a cost-effect solution to keep up with the constant demands of IP-based, industrial communication needs. The switch is easy to configure and install and is best suited for small to medium-sized networks.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 852-1112 |
| Manufacturer Alternate Number | 60310762 |
| UPC | 4055143500180 |
| Switching Mode | StoreāandāForward; Non-Blocking |
| Number of Ports | 8 |
| MAC Table (Size) | 8000 Addresses |
| Supply Voltage Range | 9VDC - 57VDC |
| Power Consumption | 6 W |
| Communications | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3az Energy Efficient Ethernet, IEEE 802.1p Prioritization |
| Type | Unmanaged Switch |
| Baud Rate | Copper Cable: 10/1000 Mbit/s |
| Material | Sheet Steel |
| Color | Black |
| Mounting Type | DIN-35 Rail |
| IP Rating | IP30 |
| Topology | Star |
| Height (mm) | 116mm / 4.567 inch |
| Width (mm) | 46mm / 1.811 inch |
| Depth (Length) (mm) | 99.6mm / 3.921 inch |
| Weight (lbs) | 1.07 |
| UOM | ea |
