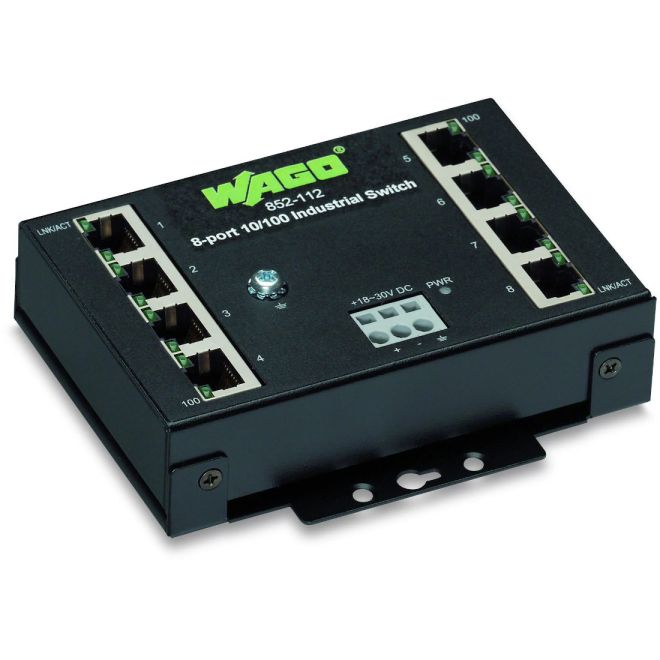

WAGO 852-112 Industrial unmanaged Switches 8 ports
SKU#:
417920
WAGO 852-112 Industrial ECO Switch is an 8-port 10/100Base-TX ETHERNET switch supporting autonegotiation and Auto-MDI-/MDI-X detection for each port. The 852-112 Switch is a cost-effective solution to keep up with the constant demands for emerging IP-based industry communication needs. This switch is easy to configure and install and is best suited for small to medium-sized networks.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 852-112 |
| Manufacturer Alternate Number | 8520112 |
| UPC | 4045454847586 |
| Switching Mode | StoreāandāForward; Non-Blocking |
| Number of Ports | 8 |
| MAC Table (Size) | 2000 Addresses |
| Supply Voltage Range | 18VDC - 30VDC |
| Power Consumption | 3 W |
| Communications | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control |
| Type | Unmanaged Switch |
| Baud Rate | Copper Cable: 10/100 Mbit/s |
| Material | Sheet Steel |
| Color | Black |
| Mounting Type | DIN-35 Rail |
| IP Rating | IP30 |
| Topology | Star |
| Height (mm) | 73.8mm / 2.906 inch |
| Width (mm) | 109.2mm / 4.299 inch |
| Depth (Length) (mm) | 32mm / 1.26 inch |
| Weight (lbs) | 0.91 |
| UOM | ea |
