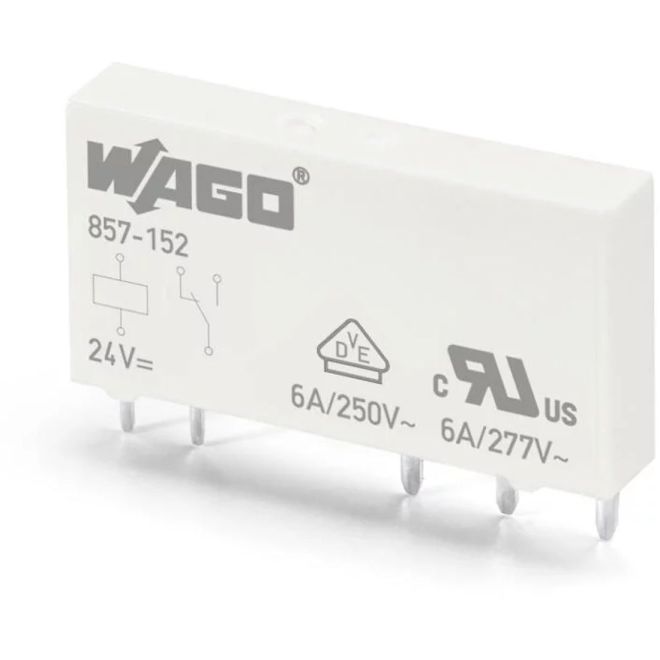

WAGO 857-152 Basic Relays Input Voltage 24VDC 6A
SKU#:
420383
With a common profile and 6mm wide housing, WAGO 857-152 relays and optocouplers provide a pow-erful compact solution for switching applications. An optional interface adapter plugs into the input or output side, combining eight modules to reduce wiring time and errors. Features include: Pluggable relays or optocouplers, Jumpering capabilities, LED indication, Wide input voltage range (5VAC - 230VAC/5VDC - 230VDC versions), Up to 6 A switching current, Marking options, Can be used with 857 Series signal conditioners.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 857-152 |
| Manufacturer Alternate Number | 8570152 |
| UPC | 4045454550998 |
| Coil Voltage | 24VDC |
| Max. Switching Voltage | 250 VAC |
| Rated Load (Resistive) | 20A |
| Max. Switching Power(Resistive) | 1,500VA |
| Minimum Load | 10mA at 10V; 1mA at 24V |
| Operating Temperature | -40°C - +85°C |
| RoHS Compliant | Yes |
| Duty Cycles | 50,000,000 |
| Height (mm) | 15mm / 0.591 inch |
| Width (mm) | 5mm / 0.197 inch |
| Depth (Length) (mm) | 28mm / 1.09 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
