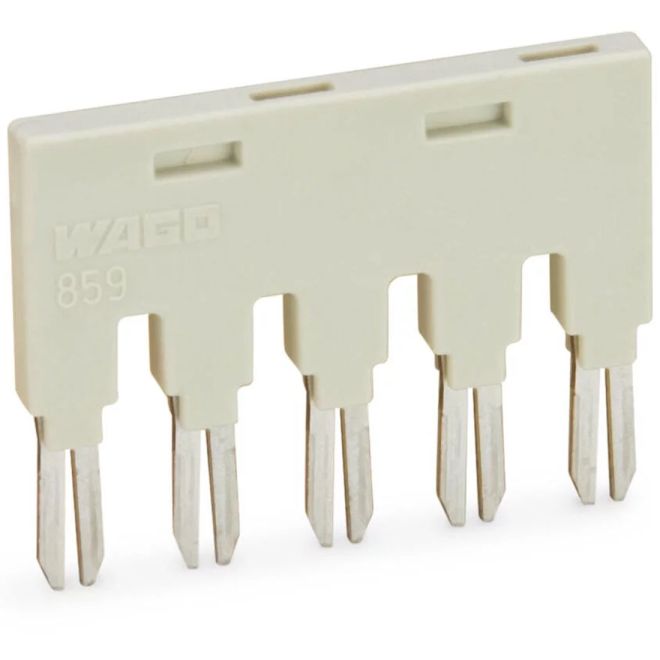

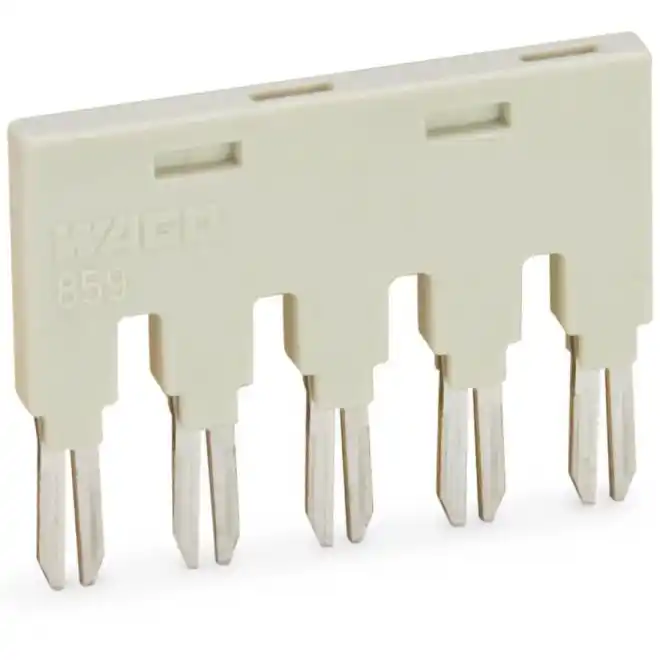

WAGO 859-405 Push-in Jumper Bars Gray 5-Position
SKU#:
310153
With a large variety of relays and optocouplers, WAGO 859-405 will suit any industrial interface application. The compact housing is ideal for space-restricted control panels. Simple commoning at the control and load-side level saves valuable wiring time and reduces errors. Features include: 6 mm wide housing for DIN rail mounting, Jumpering capabilities, LED indication, Integrated test port at each termination, Marking options, Custom solutions available - please contact Bolen's Control House.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 859-405 |
| Manufacturer Alternate Number | 51131381 |
| UPC | 4044918508155 |
| Rated Current | 18A |
| Jumper Assignment | 5-Way |
| Color | Light Gray |
| Height (mm) | 21.5mm / 0.846 inch |
| Width (mm) | 28mm / 1.102 inch |
| Depth (Length) (mm) | 2.5mm / 0.098 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
