RITTAL 8614675 Partial Mounting Plate SE 8614.675
SKU#:
275012

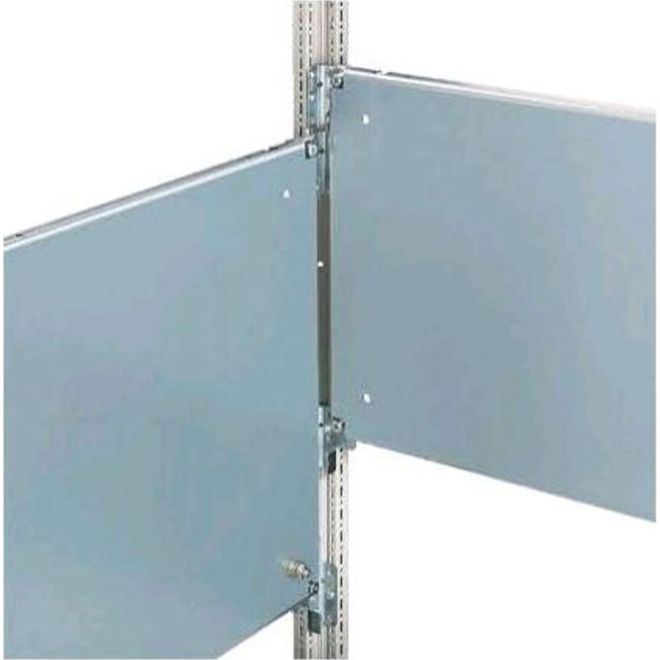

Rittal 8614675 partial mounting plates for TS, SE is for universal interior installation including in combination with system chassis and mounting strips. Faulty assemblies can be replaced quickly and easily. Additional mounting evels. Partial mounting plates are fastened directly onto the vertical enclosure profiles via the inner mounting level using the assembly components supplied loose. In this installation position (in both the width and the depth) they form one level with TS system chassis 17 x 73 mm and TS mounting strips for the inner mounting level.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8614675 |
| Manufacturer Alternate Number | TS 8614.675 |
| UPC | 639889005808 |
| Material | Carbon Steel |
| Surface Finish | Zinc-Plated |
| Supply Includes | Assembly Components |
| Height (mm) | 775mm (31") |
| Width (mm) | 500mm (20") |
| Weight (lbs) | 21.61 |
| UOM | ea |
