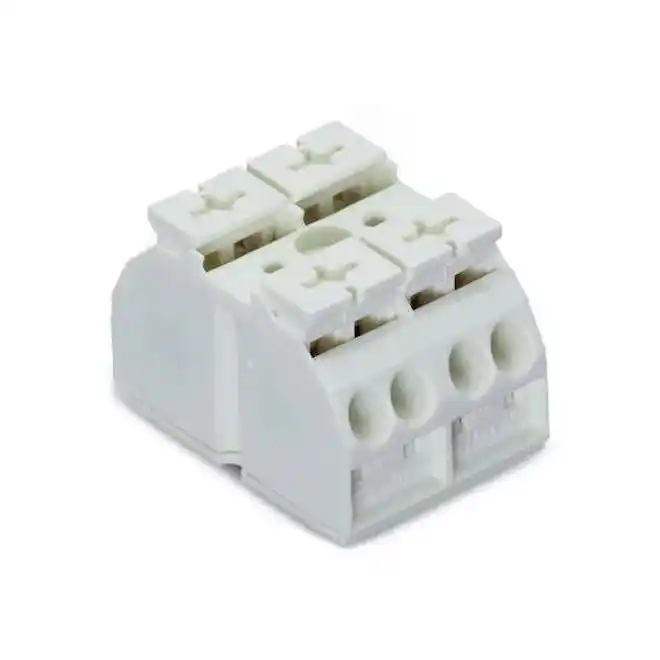

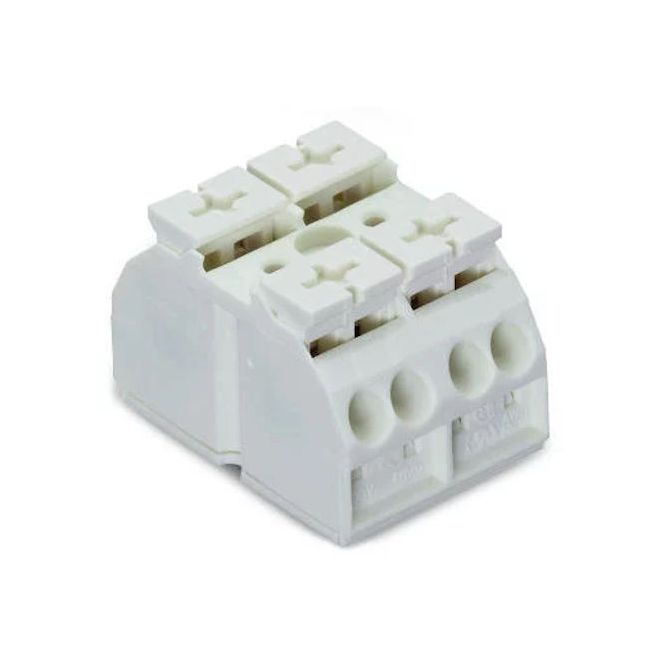

WAGO 862-632 4-Conductor Terminal Strips White
SKU#:
310246
WAGO 862-632 4-conductor chassis-mount terminal strip; 2-pole; without ground contact; 1 snap-in foot per pole; 4 mm2; 4,00 mm2; white.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 862-632 |
| Manufacturer Alternate Number | 51131479 |
| UPC | 4044918509374 |
| Electrical Connection | Push-in CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.5mm2 - 4mm2 / 20 - 12 AWG |
| Fine-Stranded Conductor with Ferrule Wire Range | 0.5mm2 - 2.5mm2 / 20 - 12 AWG |
| Total Number of Connection Points | 8 |
| Total Number of Potentials | 2 |
| Strip Length | 10mm - 11mm / 0.39 - 0.43 inch |
| Type of Wiring | Side-Entry Wiring |
| Mounting Type | Chassis |
| Color | White |
| Height (mm) | 22.3mm / 0.878 inch |
| Width (mm) | 24mm / 0.945 inch |
| Depth (Length) (mm) | 35mm / 1.378 inch |
| Weight (lbs) | 0.03 |
| UOM | ea |
