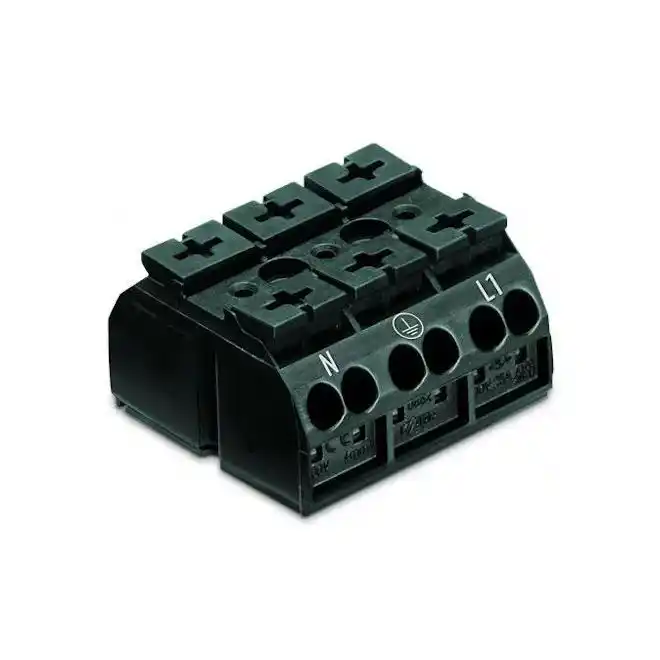

WAGO 862-8593 4-Conductor Terminal Strips Black
SKU#:
310260
WAGO 862-8593 4-conductor chassis-mount terminal strip; 3-pole; N-PE-L1; with ground contact; 4 mm2; 4,00 mm2; black.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 862-8593 |
| Manufacturer Alternate Number | 51131553 |
| UPC | 4044918510509 |
| Electrical Connection | Push-in CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.5mm2 - 4mm2 / 20 - 12 AWG |
| Fine-Stranded Conductor with Ferrule Wire Range | 0.5mm2 - 2.5mm2 / 20 - 12 AWG |
| Total Number of Connection Points | 12 |
| Total Number of Potentials | 3 |
| Strip Length | 10mm - 11mm / 0.39 - 0.43 inch |
| Type of Wiring | Side-Entry Wiring |
| Mounting Type | Chassis |
| Color | Black |
| Height (mm) | 36mm / 1.417 inch |
| Width (mm) | 12mm / 0.472 inch |
| Depth (Length) (mm) | 35mm / 1.378 inch |
| Weight (lbs) | 0.05 |
| UOM | ea |
