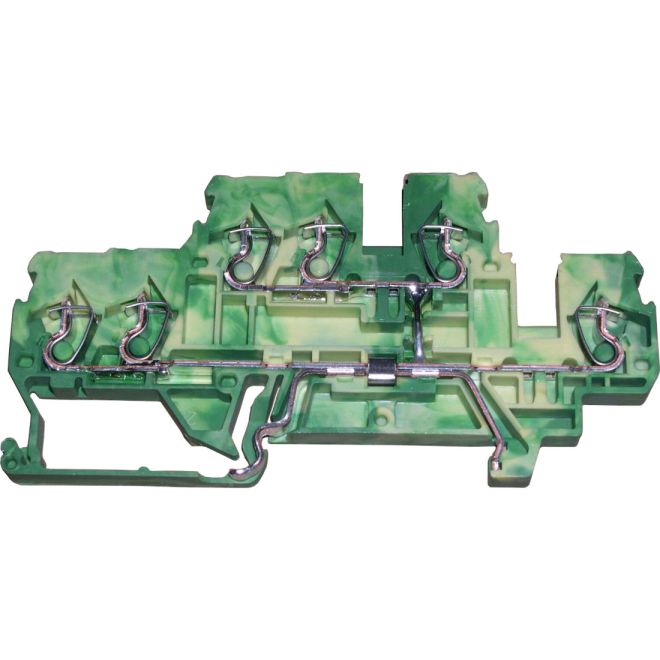

WAGO 870-537 3-Conductor Double-Deck Terminals
SKU#:
279973
WAGO rail-mount terminal block program with proven 870-537 CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include Multilevel terminal blocks: Double- or triple-deck terminal blocks save space, CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 870-537 |
| Manufacturer Alternate Number | 51161752 |
| UPC | 4045454094522 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 4mm2 / 28 - 12 AWG |
| Total Number of Connection Points | 6 |
| Total Number of Potentials | 1 |
| Strip Length | 6mm - 7mm / 0.24 - 0.28 inch |
| Number of Levels | 2 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Green-Yellow |
| Height (mm) | 91 mm / 3.583 inch |
| Width (mm) | 5mm / 0.197 inch |
| Depth (Length) (mm) | 40mm / 1.575 inch |
| Weight (lbs) | 0.03 |
| UOM | ea |
