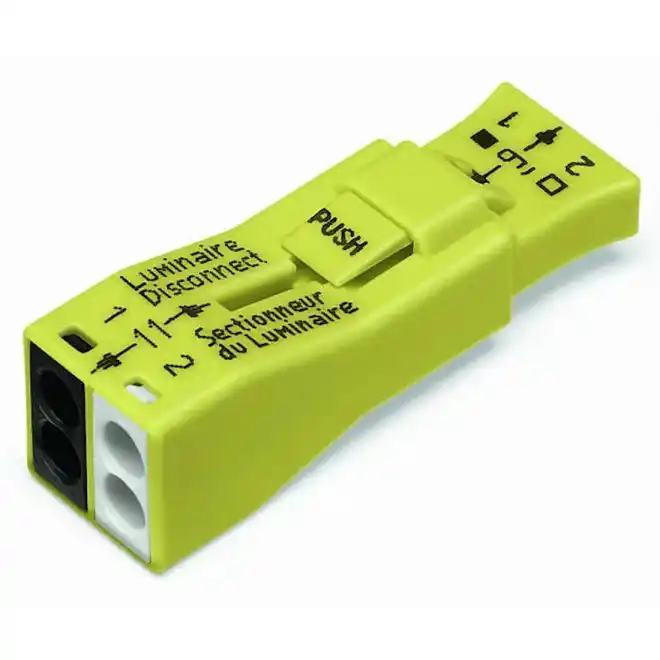

WAGO 873-902 Luminaire Disconnect Connector 2-Pole
SKU#:
389297
WAGO 873-902/K194-4045 LUMI-NUTS® are Molded in color coding for circuit wiring, Two connections per pole on male side for daisy chaining, 20 A current capacity to support multiple fixture loads, Two-piece contact construction featuring high grade stainless steel spring (for contact force) and electrolytic copper current bar (for electrical integrity), Integrated locking latch - automatic locking with mating of connectors - simple push down to disengage, UL94 V-0 flame retardant rated housing.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 873-902/K194-4045 |
| Manufacturer Alternate Number | 51200766 |
| UPC | 4045454699345 |
| Electrical Connection | PUSH WIRE® |
| Actuation Type | Push-in |
| Fine-Stranded Conductor Wire Range | 1.5mm2 - 2.5mm2 / 16 - 12 AWG |
| Strip Length | 11mm - 13mm / 0.43 - 0.51 inch |
| Total Number of Connection Points | 6 |
| Total Number of Potentials | 2 |
| Color | Yellow |
| Number of Poles | 2 |
| Height (mm) | 13.2mm / 0.52 inch |
| Width (mm) | 13mm / 0.512 inch |
| Depth (Length) (mm) | 42mm / 1.654 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
