SIEMENS 87DUE6MC Size 1 3-Phase 30A Pump Panels
SKU#:
413805

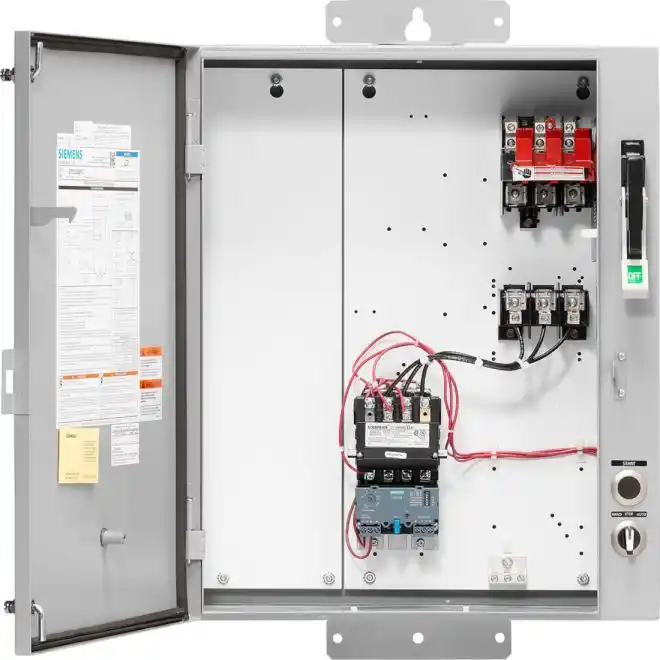

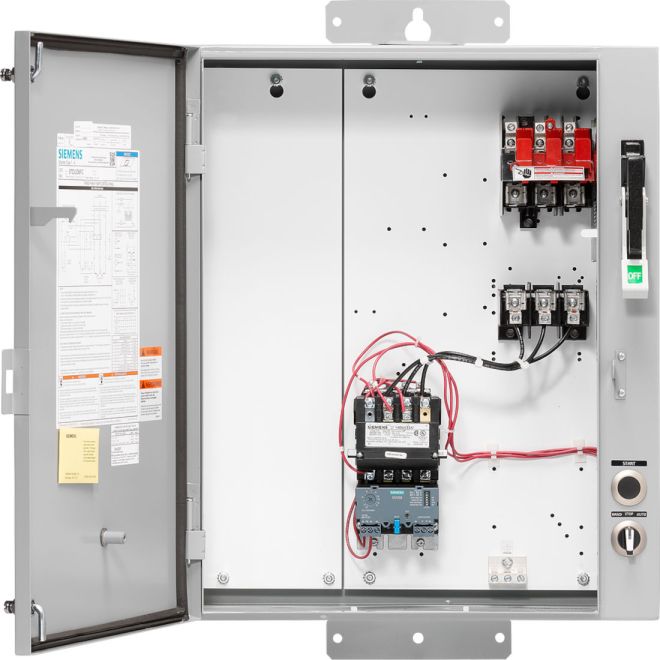

SIEMENS 87DUE6MC pump control panel, size 1, three phase full voltage, solid-state overload relay, OLR amp range 10-40A, 220-240/440-480VAC 60Hz coil, standard type contactor, 30A circuit breaker, HOA Sel Sw. <(>&<)> Start P.B., enclosure NEMA type 3/3R, weather proof outdoor use.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 87DUE6MC |
| UPC | 662643536386 |
| Rated Voltage AC | 220VAC-240VAC, 440VAC-480VAC |
| Rated Current | 30A |
| UL Rating Type | NEMA 3, NEMA 3R |
| Height (mm) | 737mm |
| Width (mm) | 508mm |
| Depth (Length) (mm) | 204mm |
| Weight (lbs) | 47.00 |
| UOM | ea |
