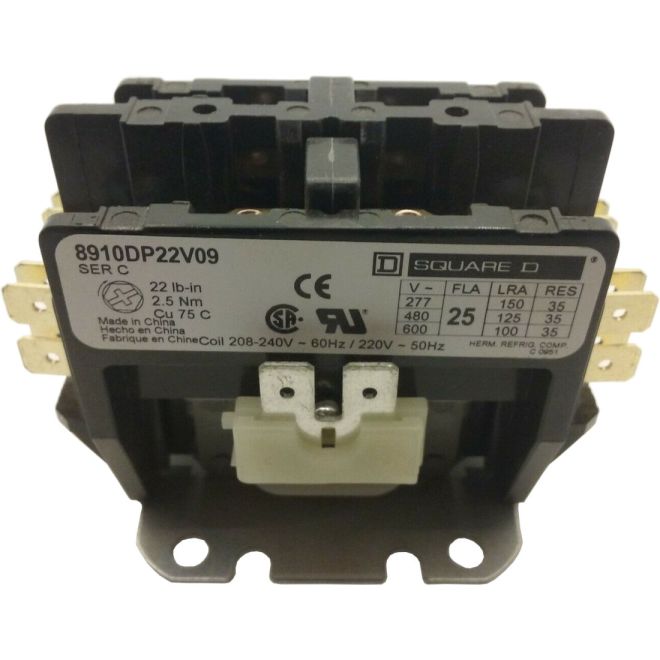

Square D 8910DP22V09 Contactor Definite Purpose
SKU#:
99272
Schneider Electric 8910DP22V09 definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. Telemecanique 8910DP line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. Square D two pole definite purpose contactor has a full load rating of 25 ampere and a resistive rating of 35 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | 8910DP22V09 |
| Manufacturer Alternate Number | 8910DP22V09 |
| UPC | 785901073321 |
| Rated Voltage | 600VAC |
| Coil Voltage | 208VAC/220VAC/240VAC |
| Contact Arrangement | 2 NO |
| Rated Current | 25A |
| Number of Poles | 2 |
| Electrical Connection | Quick Connect Terminals, Binder Head |
| HP | 1-Phase: 2hp 115VAC, 3hp at 230VAC |
| Type | Definite Purpose Contactor |
| Height (mm) | 63mm (2.48") |
| Width (mm) | 86mm |
| Depth (Length) (mm) | 58mm |
| Weight (lbs) | 0.55 |
| UOM | ea |
