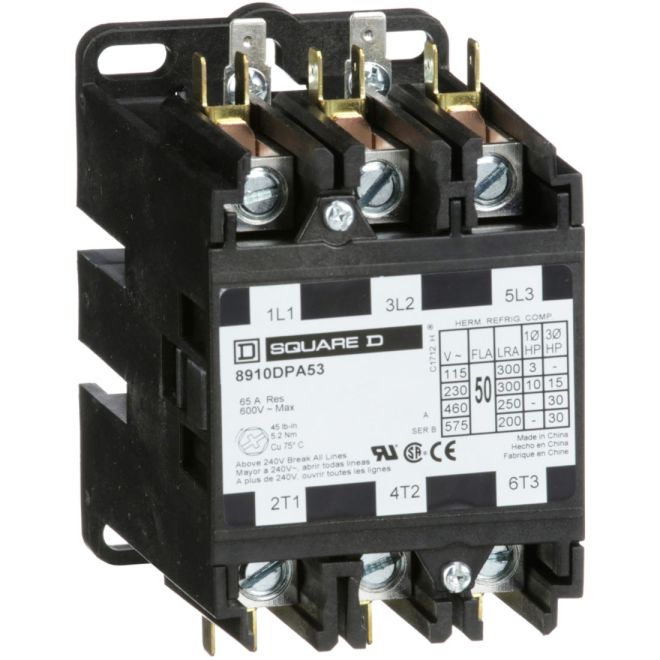

Square D 8910DPA53V02 Definite Purpose Contactors
SKU#:
99226
Schneider Electric 8910DPA53V02 definite purpose contactors are ideal for heating, air conditioning, refrigeration, data processing, and food service equipment. Telemecanique definite purpose contactors feature quick connect terminals and binder head screws for easy wiring. An exclusive DIN track mounting option may reduce installation costs. Square D auxiliary contact modules snap on either side of the Type DPA contactors. Square D 8910DPA53V02 is comparable to SIEMENS Furnas 42DF35AF.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | 8910DPA53V02 |
| UPC | 785901080756 |
| Rated Voltage | 600VAC |
| Coil Voltage | 110VAC - 120VAC |
| Contact Arrangement | 3 N/O |
| Rated Current | 50A |
| Number of Poles | 3 |
| Electrical Connection | Quick Connect Terminals, Box Lugs |
| HP | 1-Phase: 3hp 115VAC, 10hp at 230VAC, 3-Phase: 15hp at 230VAC, 30hp at 460VAC, 30hp at 575VAC |
| Type | Definite Purpose Contactor |
| Height (mm) | 105mm |
| Width (mm) | 65mm |
| Depth (Length) (mm) | 93mm |
| Weight (lbs) | 1.50 |
| UOM | ea |
