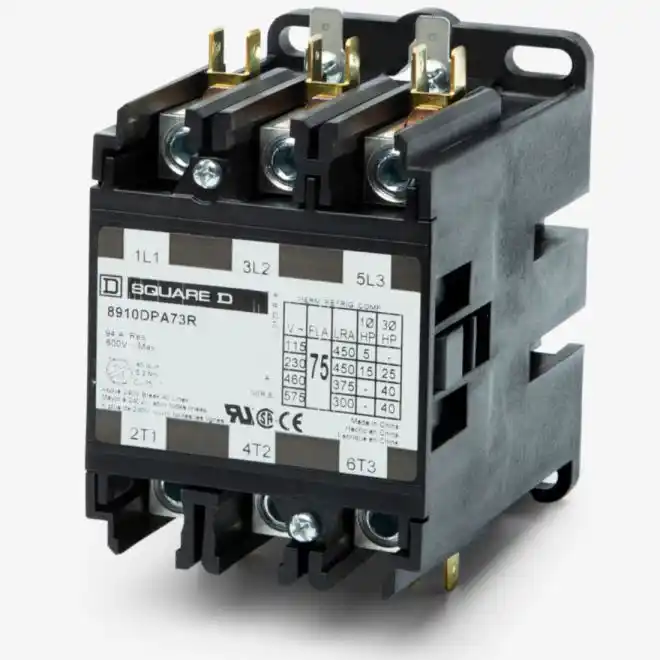

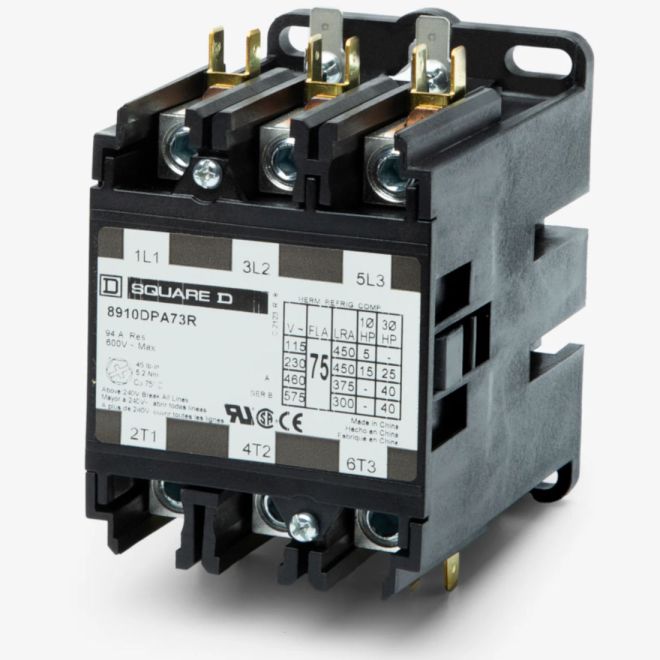

Square D 8910DPA73RV02 Definite Purpose Contactors
SKU#:
612882
Schneider Electric 8910DPA73RV02 definite purpose contactors are ideal for heating, air conditioning, refrigeration, data processing, and food service equipment. Telemecanique definite purpose contactors feature quick connect terminals and binder head screws for easy wiring. An exclusive DIN track mounting option may reduce installation costs. Square D auxiliary contact modules snap on either side of the Type DPA contactors.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | 8910DPA73RV02 |
| UPC | 785901768333 |
| Rated Voltage | 600VAC |
| Coil Voltage | 110VAC - 120VAC |
| Contact Arrangement | 3 N/O |
| Rated Current | 75A |
| Number of Poles | 3 |
| Mounting Type | DIN Rail |
| Terminal Type | Quick Connect |
| Electrical Connection | Quick Connect Terminals, Box Lugs |
| HP | 1-Phase: 5 hp 115 V AC, 15 hp 230 V AC, 25 hp 230 V AC, 3-Phase: 40 hp 460 V AC, 40 hp 575 V AC |
| Type | Definite Purpose Contactor |
| Height (mm) | 92.8mm |
| Width (mm) | 104mm (4.11") |
| Depth (Length) (mm) | 65mm |
| Weight (lbs) | 1.51 |
| UOM | ea |
